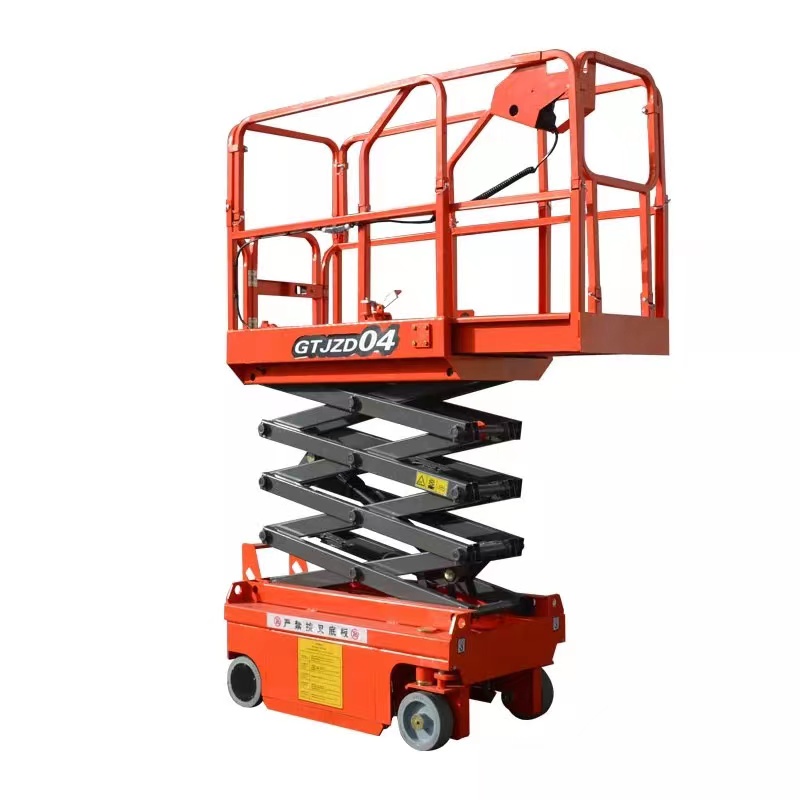

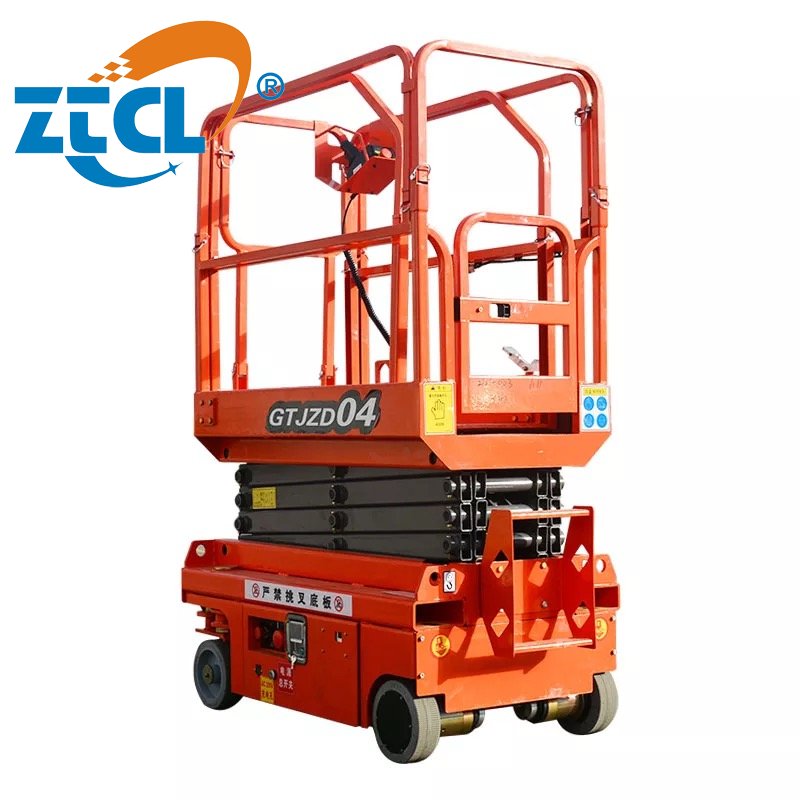

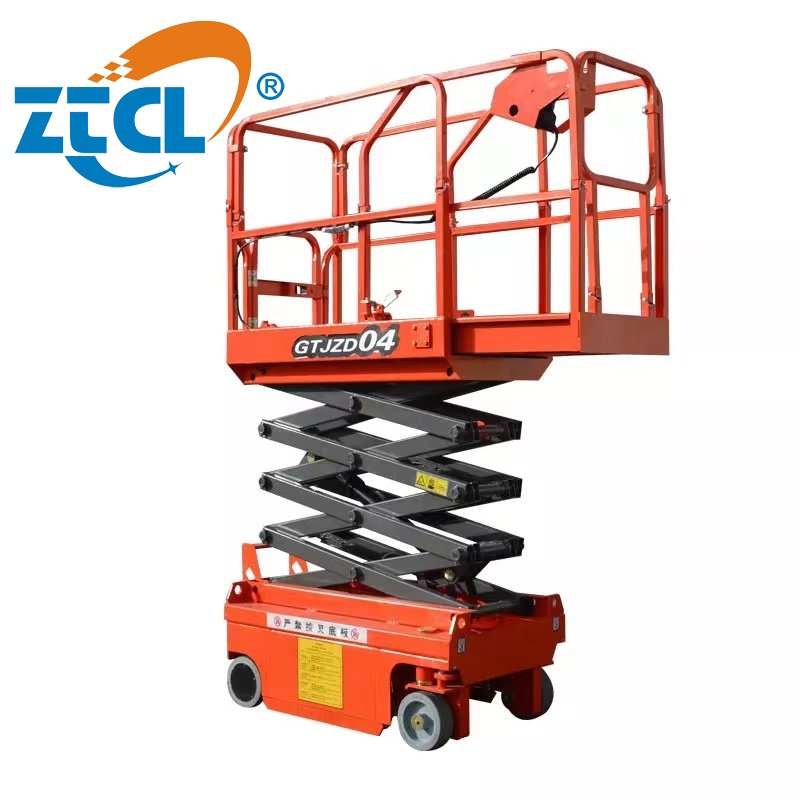

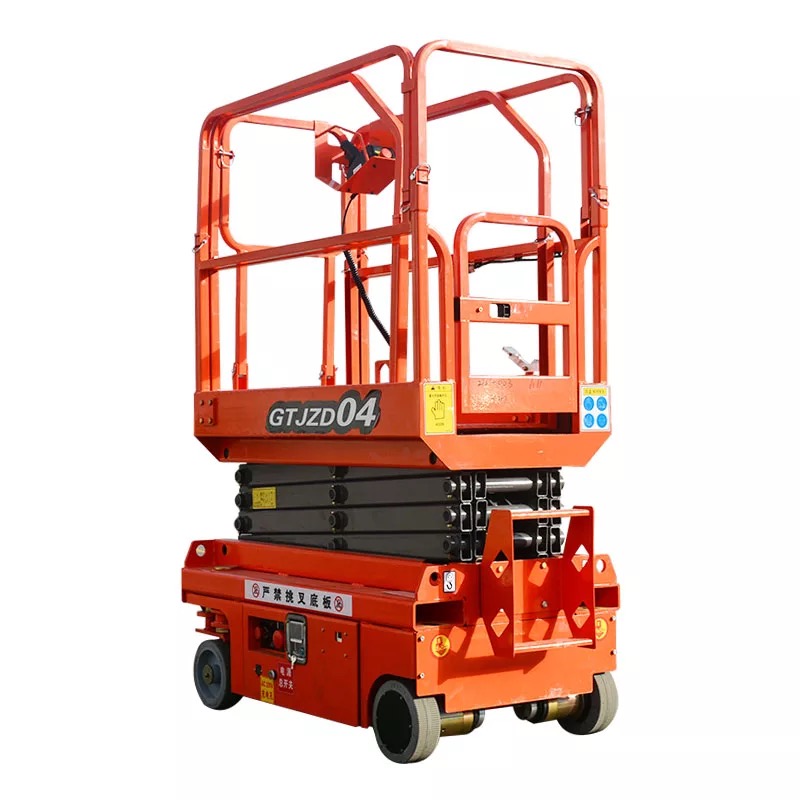

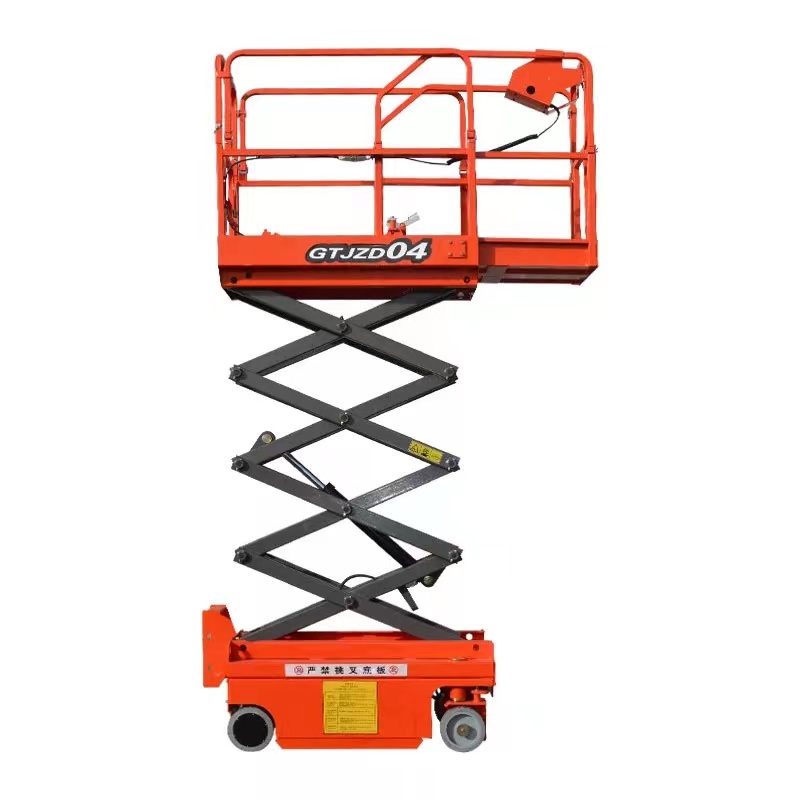

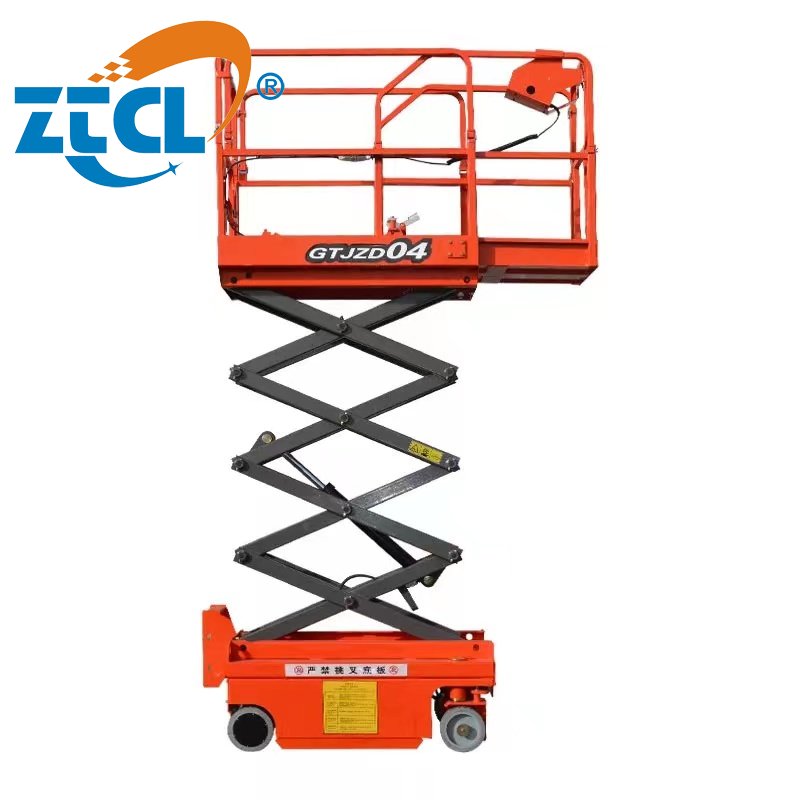

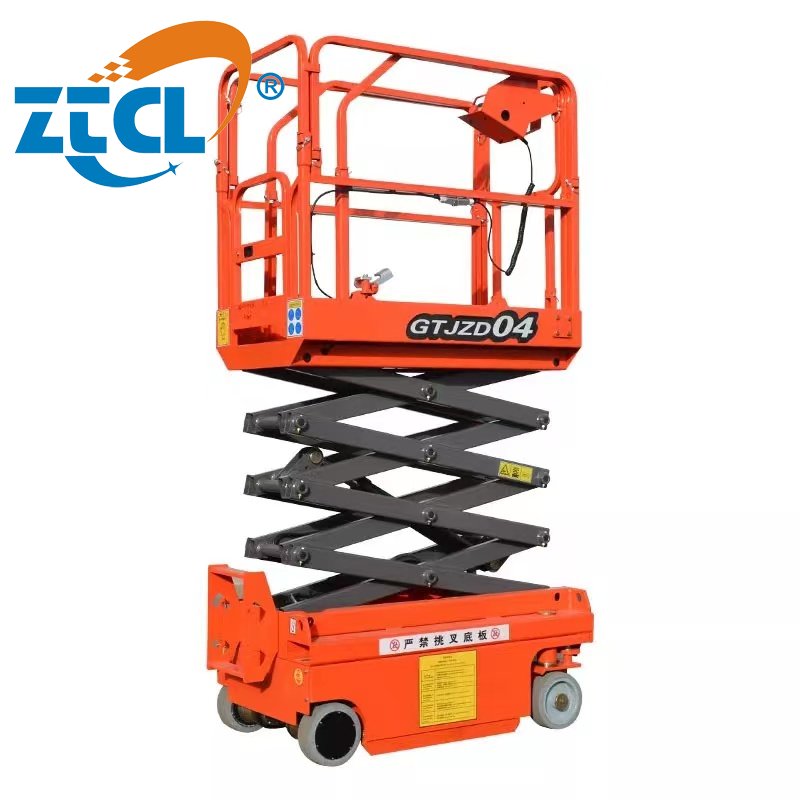

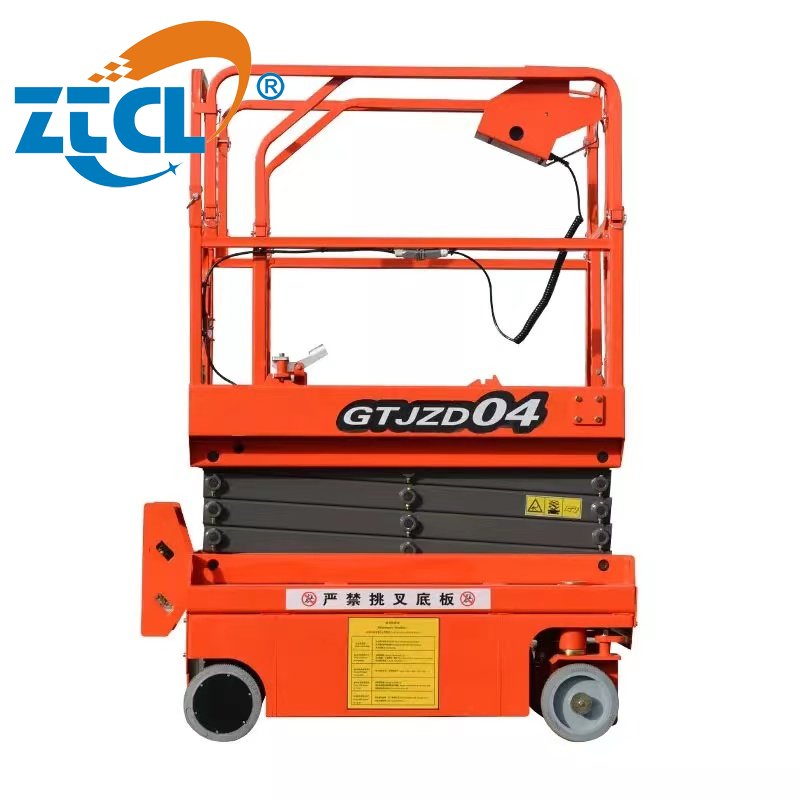

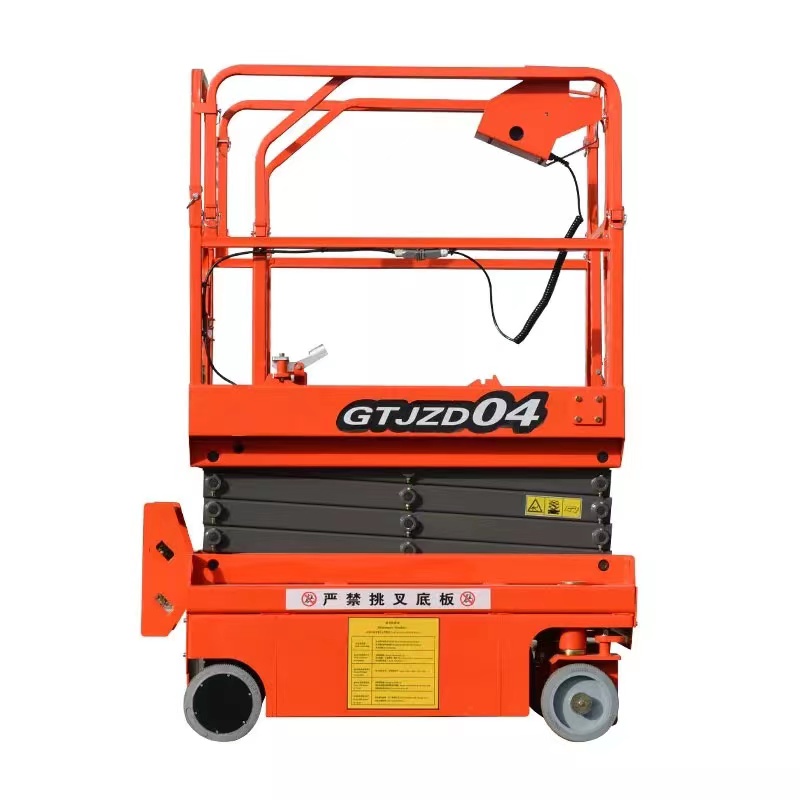

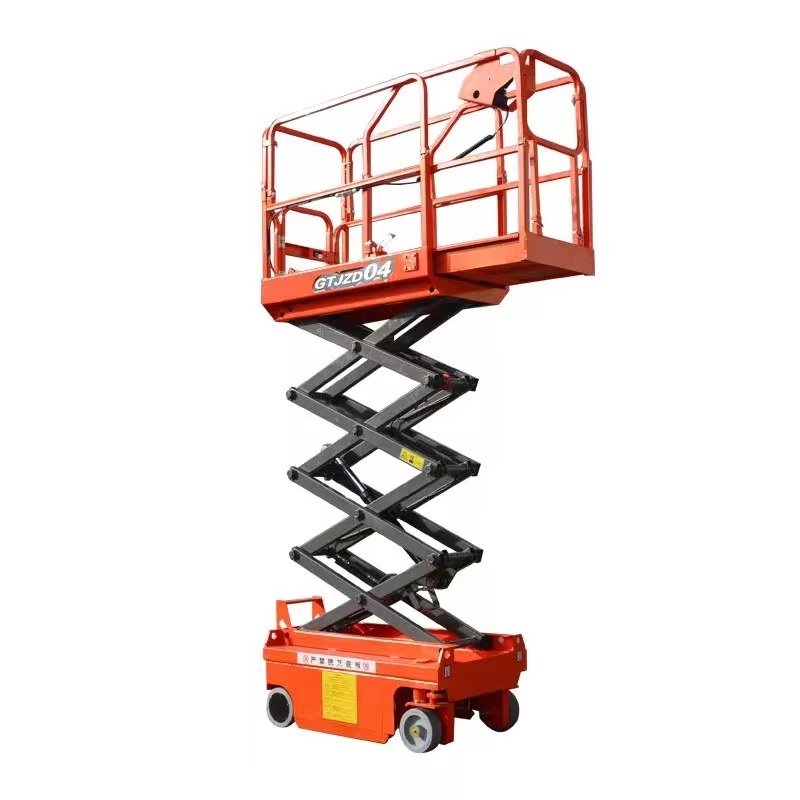

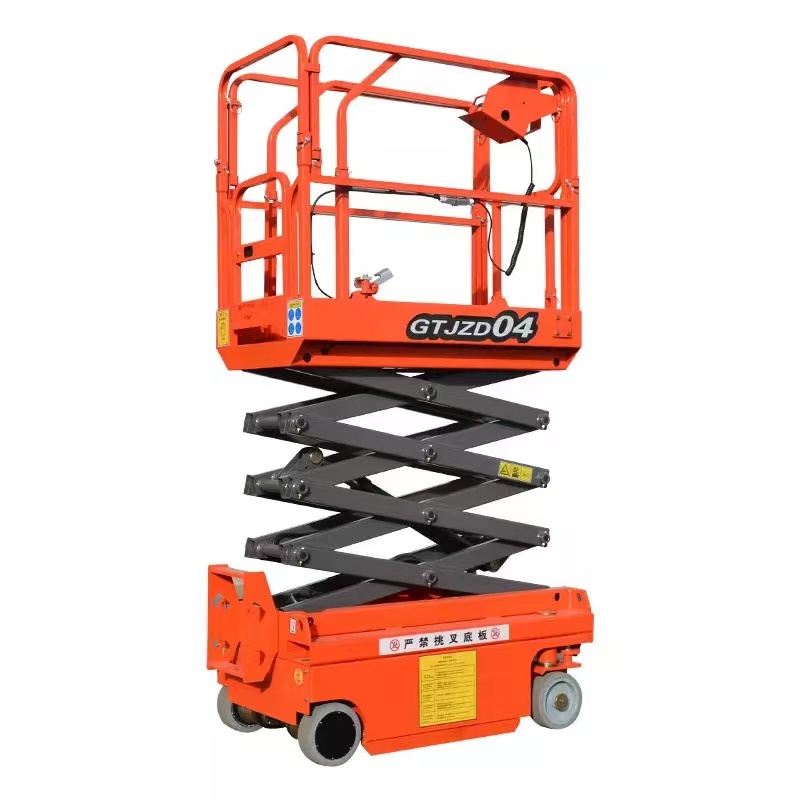

ZTGTJZ04 Mini self-propelled scissor lift

Model： ZTGTJZ04
Safe load: 240kg
Extended platform safety load: 100kg
Max number of personnel: 2
E: Max platform height:4m
Max Working height 6m
A Overall ength: 1.44m
B Overall width: 0.76m
D Overall height (guardrail not folded): 2.03m
Overall height (folding guardrail): 1.67m
C Work platform size (length×width): 1.29×0.7m
F platform extension size 0.6m
Min ground clearance (fold up/lift): 0.06/0.015m
Wheelba<x>se : 1.05m
Minimum turning radius
(outer wheel/inner wheel): 1.35m/0.3m
Drive motor: 2×24VDC/0.5kw
Lifting motor 24VDC/0.8kw
Travel speed (closed state): 4.0km/h
Travel speed (lifting state): 0.5km/h
UP and Down speed: 4-6m/min
Battery: 2×12V/80Ah
Max Climb Capability: 25％
Max allowable working angle: 2°/3°
Drive wheel: Φ230×80mm
Front wheel: Φ230×80mm
Total Weight: 890kg

PRODUCT DETAIL

Model	ZTGTJZ04
Safe load	240kg
Extended platform safety load	100kg
Max number of personnel	2
E: Max platform height	4m
Max Working height	6m
A： Overall ength	1.44m
B ：Overall width	0.76m
D ：Overall height (guardrail not folded)	2.03m
E:Overall height (folding guardrail)	1.67m
C ：Work platform size (length×width)	1.29×0.7m
F ：platform extension size	0.6m
Min ground clearance (fold up/lift)	0.06/0.015m
Wheelbase	1.05m
Minimum turning radius (outer wheel/inner wheel)	1.35m/0.3m
Drive motor	2×24VDC/0.5kw
Lifting motor	24VDC/0.8kw
Travel speed (closed state)	4.0km/h
Travel speed (lifting state)	0.5km/h
UP and Down speed	4-6m/min
Battery	2×12V/80Ah
Max Climb Capability	25％
Max allowable working angle	2°/3°
Drive wheel	Φ230×80mm
Front wheel	Φ230×80mm
Total Weight	890kg
