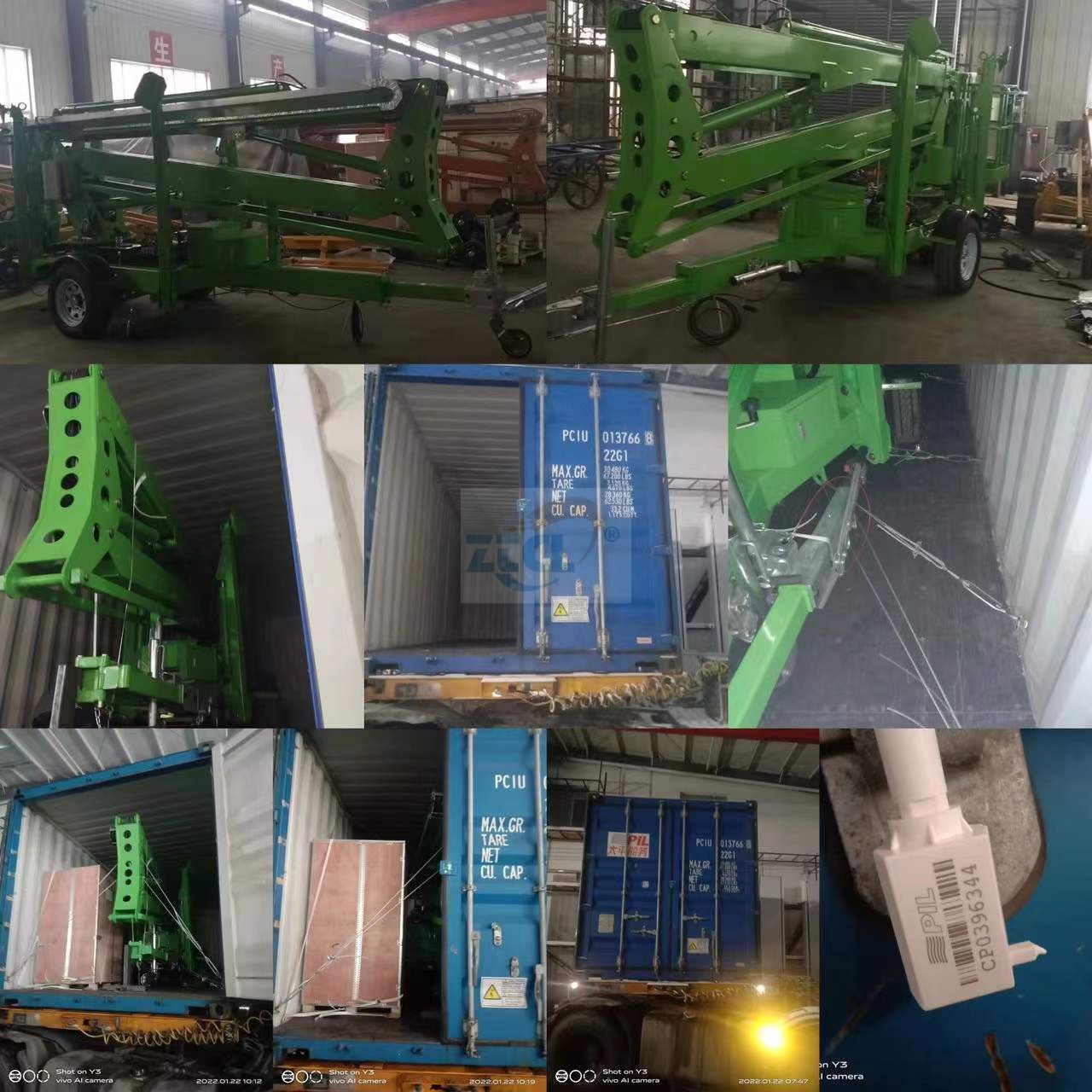

    ZTTM1618M 3sets Load 40ft container

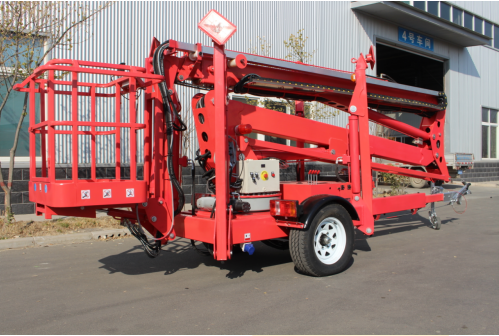

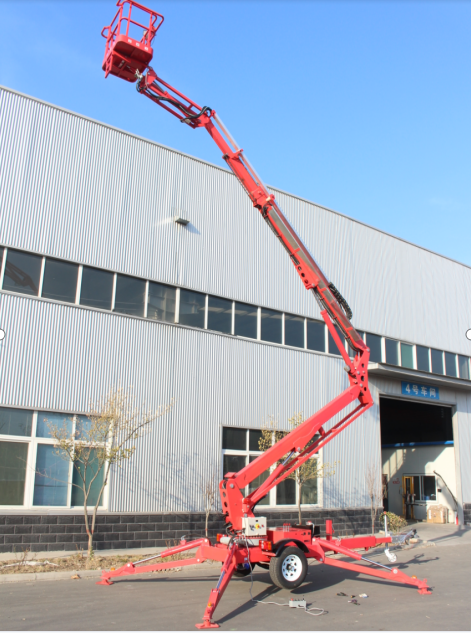

    16m Trailer Mounted Boom Lift
    Project performance parameter
    1 Platform size 900*700mm
    2 Loading capacity (kg) 150
    3 Worker 2 People
    4 Platform height mm 16000

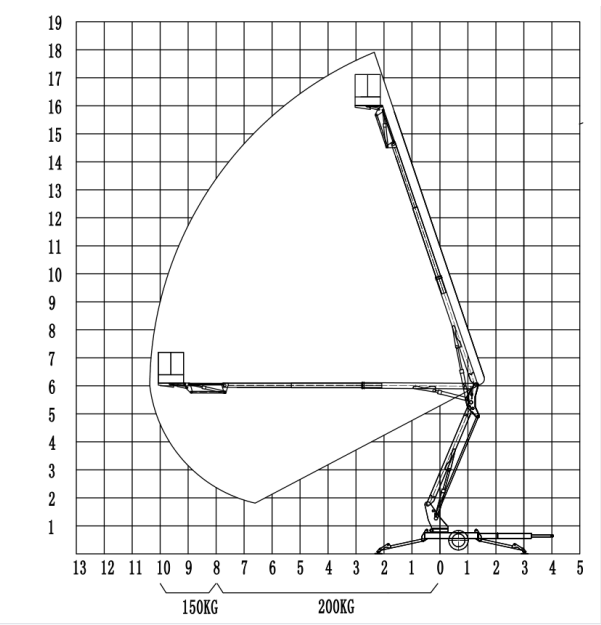

    5 Working height mm 18000
    6 Working radius mm 10000
    7 Whole machine length mm 6700
    8 Whole machine width mm 1700
    9 Minimum platform height mm 2250
    10 Oil cylinder Hebei Hengyu
    11 Power producer v/kw 380V/2.2kw standard configuration
    Selection power： Diesel engine gasoline engine 220V 50hz
    Batteries
    4pieces 6V230ah
    12 Driving model External force traction
    13 Rotation angle 359°
    14 Hydraulic leg  Automatic telescopic Independently adjustable 4pcs
    15 Tire 225-70R15C
    16 control system Upper and lower control set manual emergency descending valve
    17 Self-weight kg 2800

    PRODUCT DETAIL

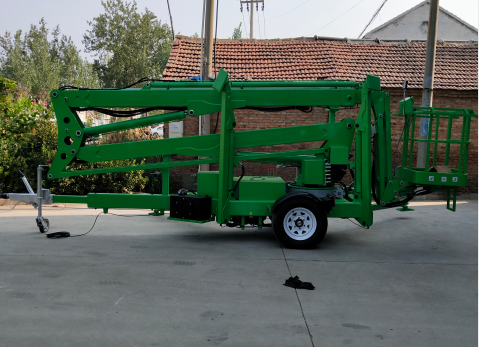

    16m Trailer Mounted Boom Lift



    Project

    performance parameter

    1

    Platform size

    900*700mm

    2

    Loading capacity (kg)

    150

    3

    Worker

    2  People

    4

    Platform height mm

    16000

    5

    Working height mm

    18000

    6

    Working radius mm

    10000

    7

    Whole machine length mm

    6700

    8

    Whole machine width mm

    1700

    9

    Minimum platform height mm

    2250

    10

    Oil cylinder

    Hebei Hengyu

    11

    Power producer v/kw

    380V/2.2kw

    standard configuration

    Selection, power：

    Diesel engine, gasoline engine

    220V 50hz

    Batteries
    4pieces 6V230ah



    12

    Driving model

    External force traction

    13

    Rotation angle

    359°

    14

    Hydraulic leg

    Automatic telescopic Independently adjustable 4pcs

    15

    Tire

    225-70R15C

    16

    control system

    Upper and lower control, set manual emergency descending valve

    17

    Self-weight kg

    2800



       Advantages:
    ZTTPF trailer lifting platform, lifting work table can be raised and can be extended horizontally and adjusted up and down, the equipment can also be rotated.Easy to reach the working position over obstacles, widely used in all kinds of construction, maintenance, high-altitude cleaning, garden pruning, high-speed maintenance and other industries is an ideal elevator for work.

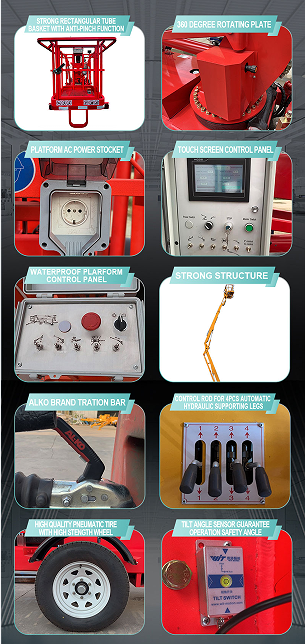

    Safety protection:
    (1) the hydraulic system is equipped with anti-explosion device (when the hydraulic pipe bursts, the explosion-proof device starts and the platform stops falling);
    (2) equipped with leakage protection device to ensure the safety of the operator;
    (3) each section of the rod above the emergency drop valve, if there is a problem with the equipment, emergency drop can be used.
    (4) the traction system imported from Italy, the brake is more sensitive.
    (5) the use of torque shaft design torque shaft balance degree of good spring.When the ground is uneven, automatically level.After electrification, with electromagnetic brake.
