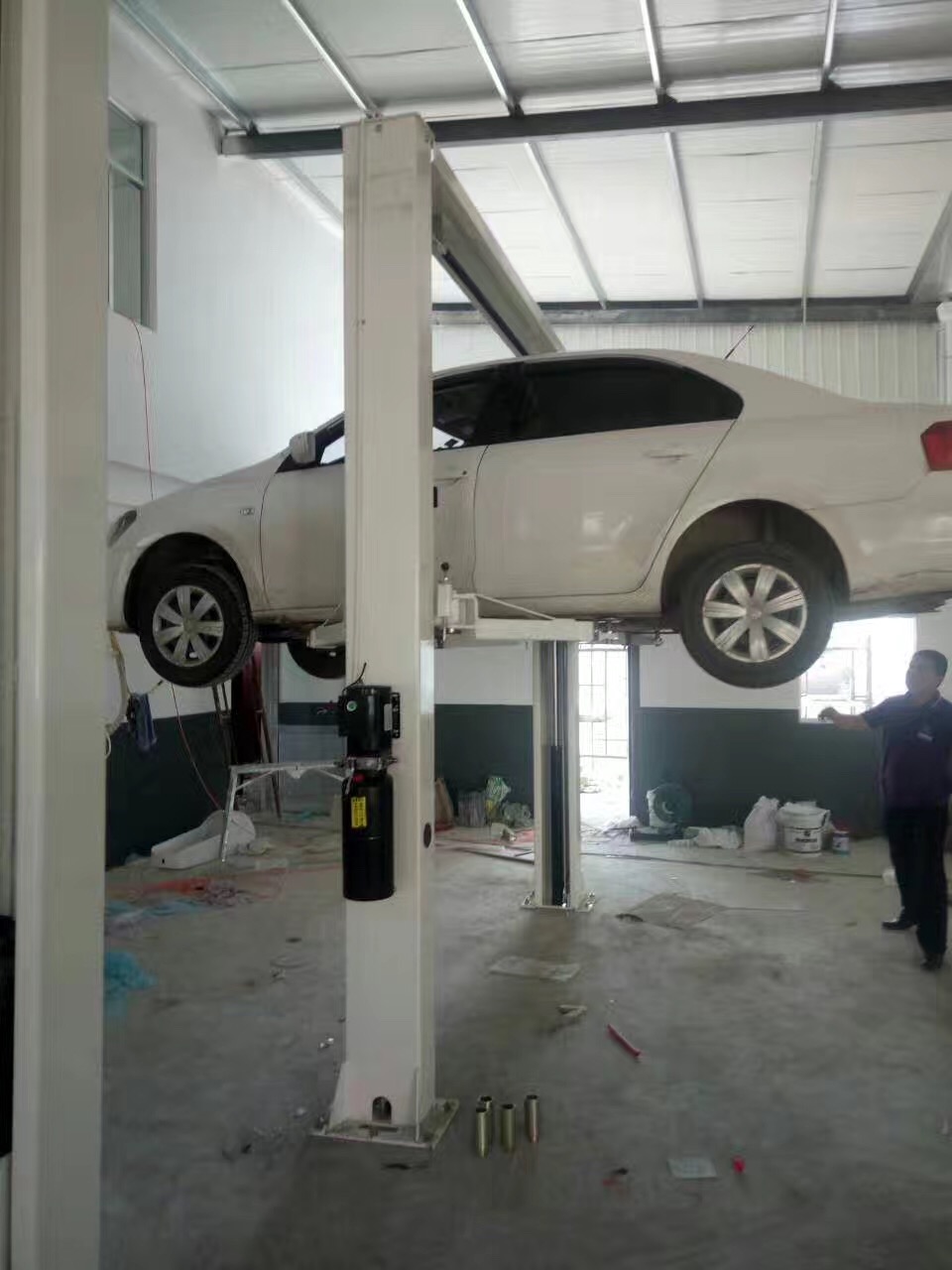

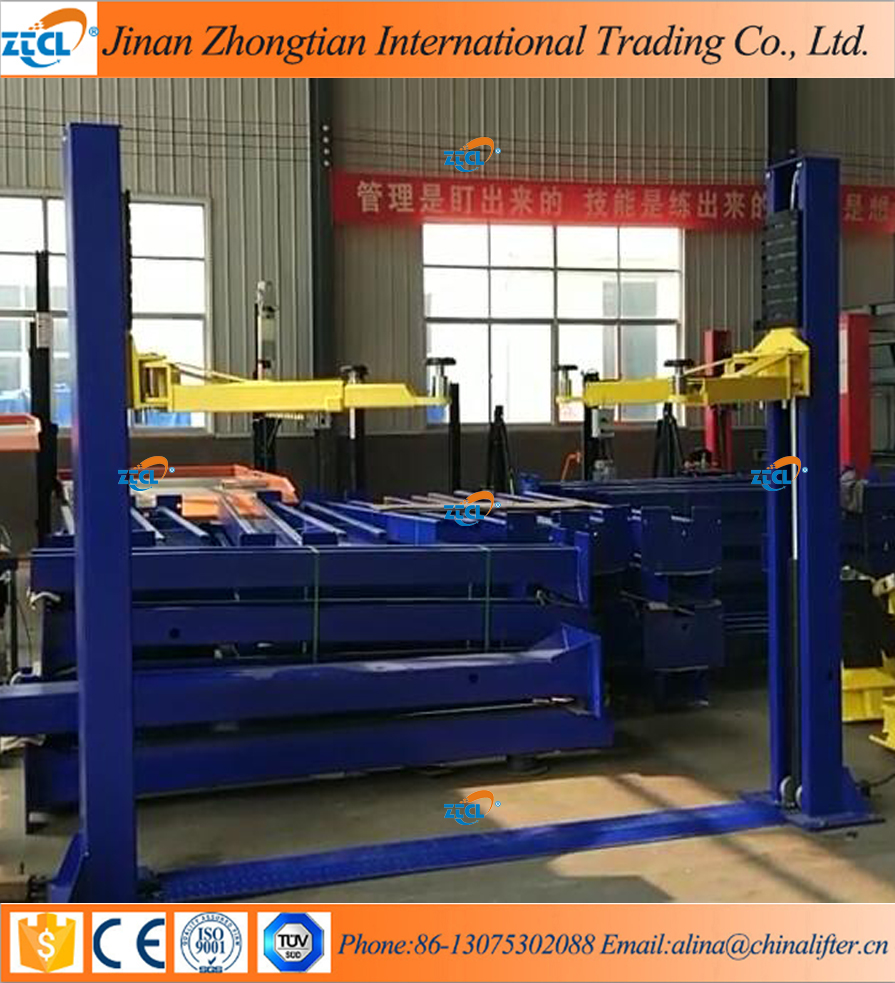

Two Posts Car Lift Technology Parameters:
Model | ZTCX |
Mode of Operations | Manual Control buttons / Keys |
Car Capacity |
4000kg |
Mode of drive |
Motor |
Warning device |
Yes |
Safeguard device | Hydraulic whole protection and anti-fall frame warning devices |
Rise Time | 50s |
Fall Time | 30s |
Work Noise | < 80dB ( A ) |
Voltage |
220V/240V/380V |
Motor Power | 2.2KW |
Maximum Working Pressure | 16 MPa |
Machine Net Weight | 542kgs |
Modes of operation |
High-grade anti-corrosion paint |
Color |
Black, Red, Blue, Grey, Yellow etc. ( customized according to user demand ) |
Certificate | ISO9001 and CE |

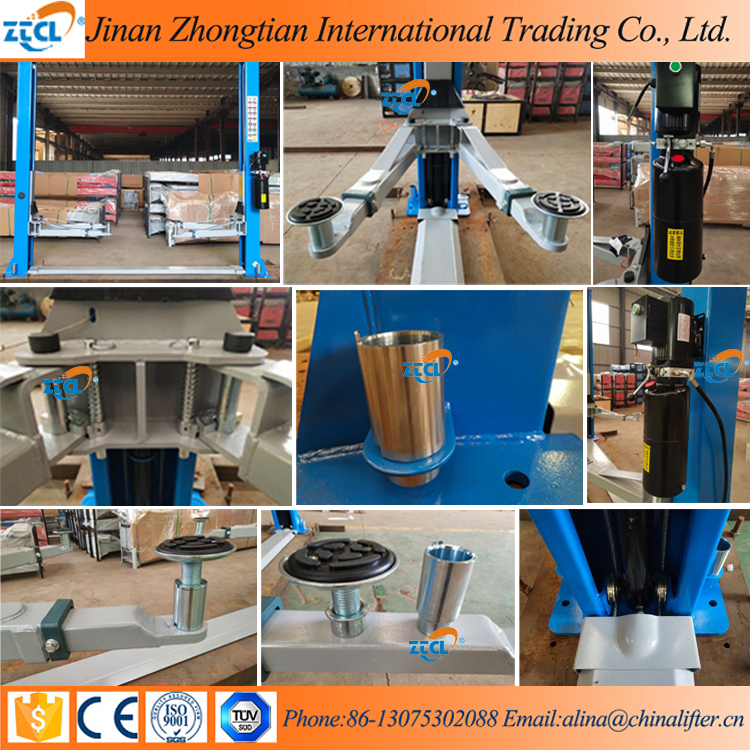

Two Posts Car Lift Features:
4000kg lifting capacity;
Clear floor design makes under-vehicle service more convenient;
Two side manual mechanical release system;
Padded overhead safety shutoff bar;
Dual hydraulic direct drive cylinders;
Feet protection bar and door opening protection rubber pad effectively avoid unexpected injuries and damages;
With height adapters for servicing light-duty trucks;
It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity;

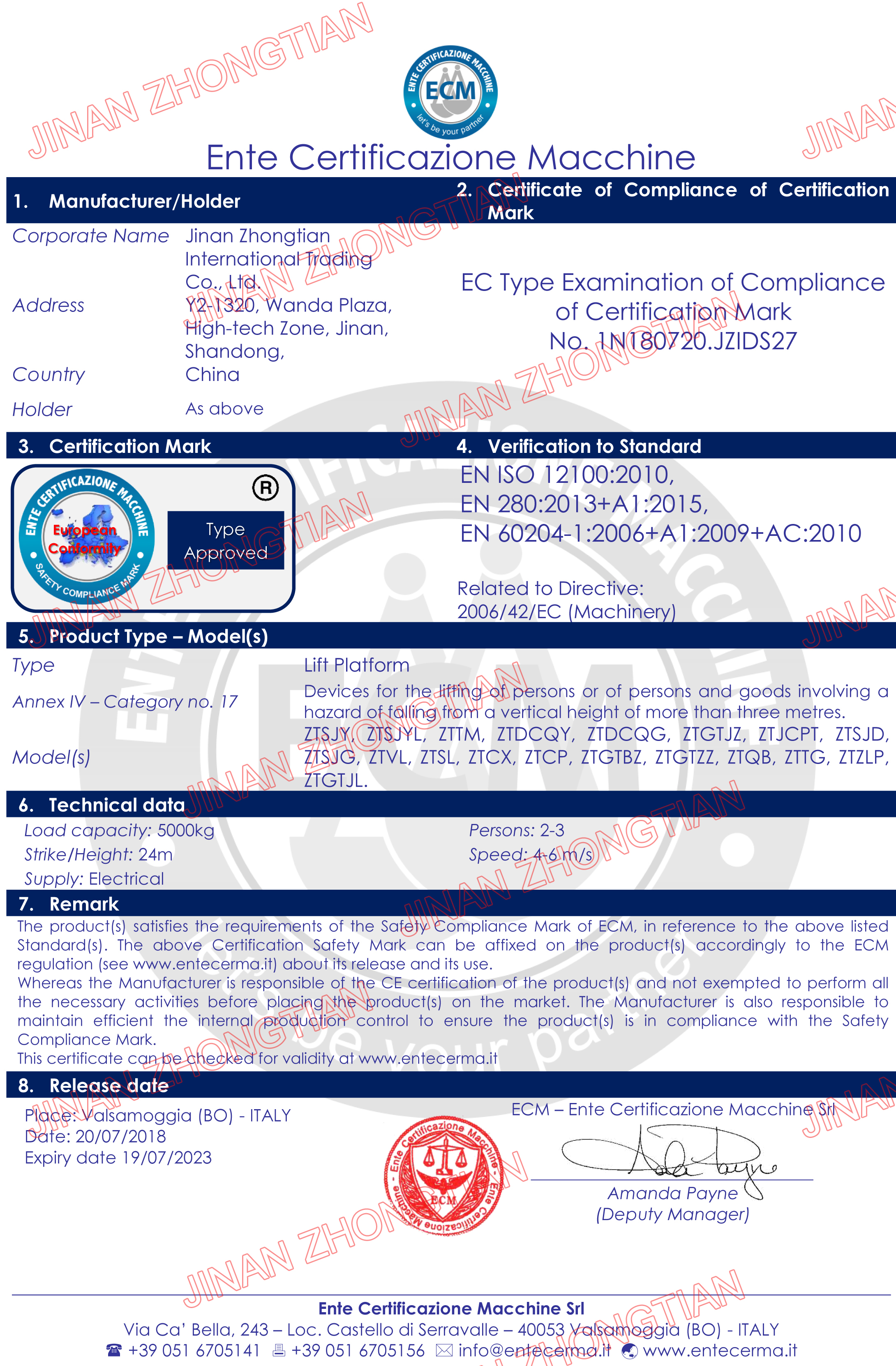

Certidication
