ZTSJD cargo lift Safety

Rail lifting platform (Rail-type lift platform) is a non-hydraulic scissor lifts. From the mobile way points are mobile lifting platform. Can achieve multi-point control interaction between the upper and lower floors interlock improve safety performance.
Lift height: 1m-12m
Loading capacity: 100kg-10T
Platform size customized
Certification: CE ISO SGS

PRODUCT DETAIL

Product introduction:

Rail lifting platform (Rail-type lift platform) is a non-hydraulic scissor lifts. From the mobile way points are mobile lifting platform. Can achieve multi-point control, interaction between the upper and lower floors interlock, improve safety performance.

Technical Parameters

Model	Loading Capacity	Lifting height	Min.height	Table size	Power
ZTSJD0.5-4.5	500kg	4500mm	150mm	2000*1500mm	2.2kw
ZTSJD1.0-4.5	1000kg	4500mm	150mm	2000*1500mm	3kw
ZTSJD2.0-4.5	2000kg	4500mm	150mm	2000*1500mm	3kw
ZTSJD3.0-4.5	3000kg	4500mm	160mm	2000*1500mm	3kw
ZTSJD0.5-7.5	500kg	7500mm	150mm	1200*1200mm	1.5kw
ZTSJD1.0-7.5	1000kg	7500mm	150mm	1800*1400mm	2.2kw
ZTSJD2.0-7.5	2000kg	7500mm	150mm	2000*1500mm	2.2kw
ZTSJD3.0-7.5	3000kg	7500mm	160mm	2000*1600mm	3kw
ZTSJD1.0-10.5	1000kg	10500mm	150mm	1800*1400mm	2.2kw
ZTSJD1.0-14	1000kg	1400mm	150mm	1800*1500mm	2.2kw
ZTSJD3.0-4.5	3000kg	4500mm	160mm	5000*3000mm	4kw

Application:

It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; it is installed in the pit or the ground floor to convey the goods from one working level to another. The control panels are available at the designated floors and one the lift platforms.

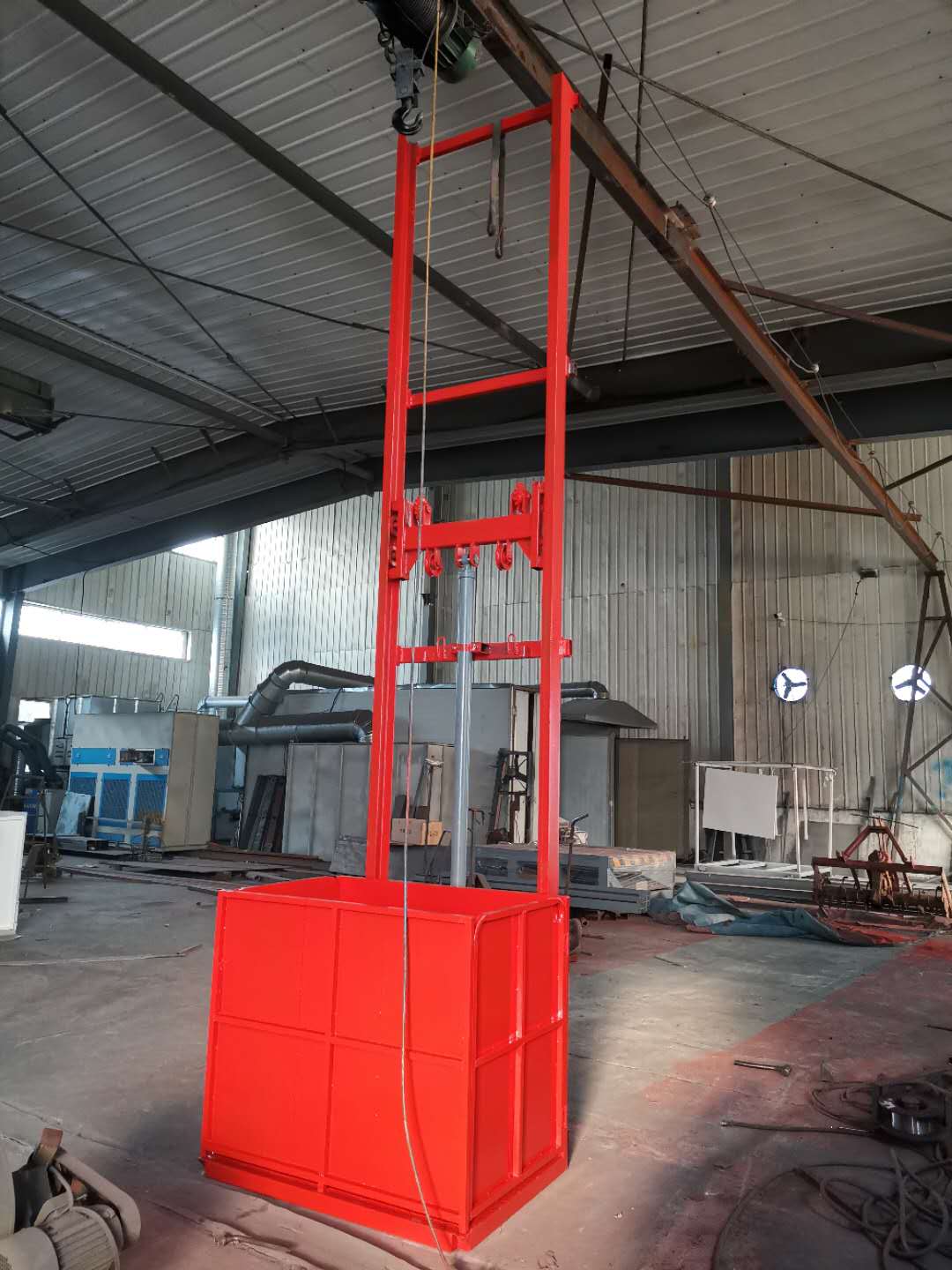

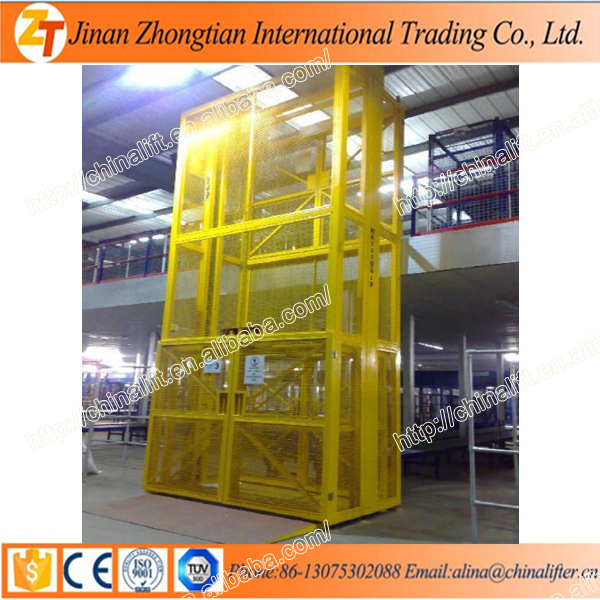

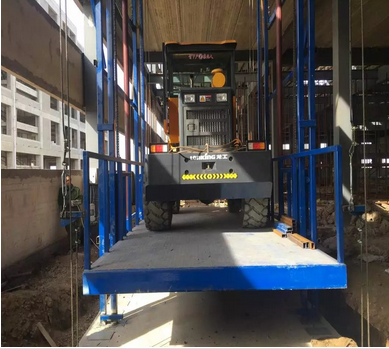

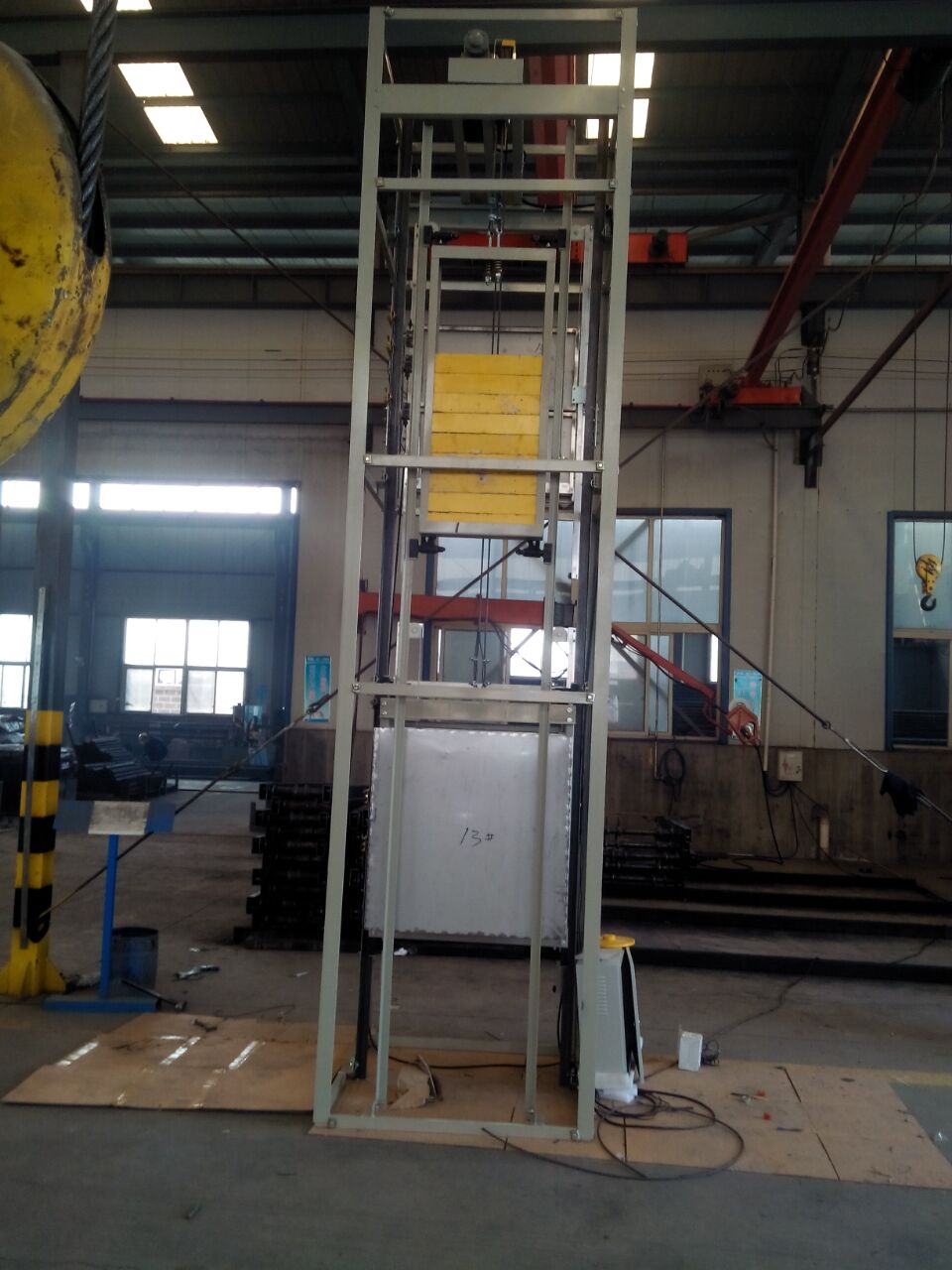

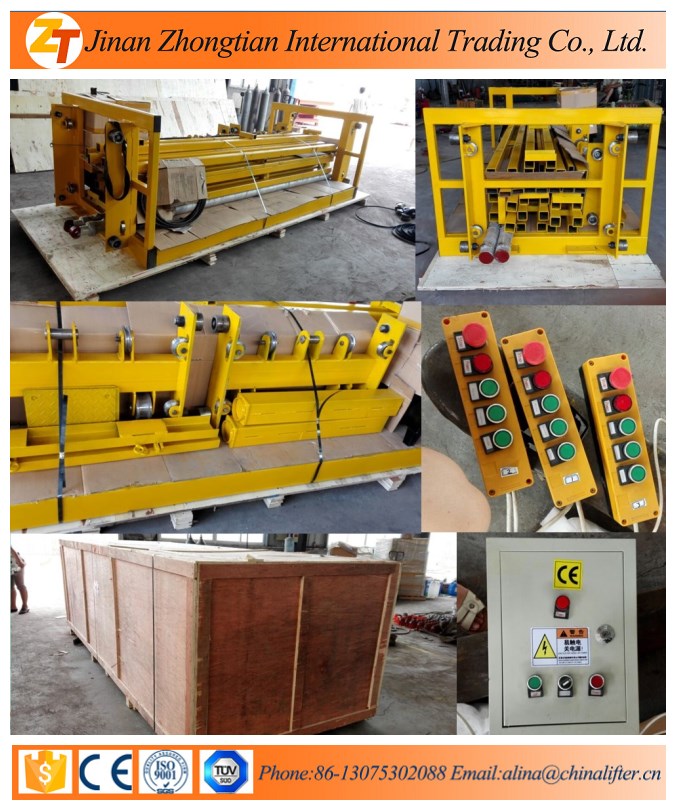

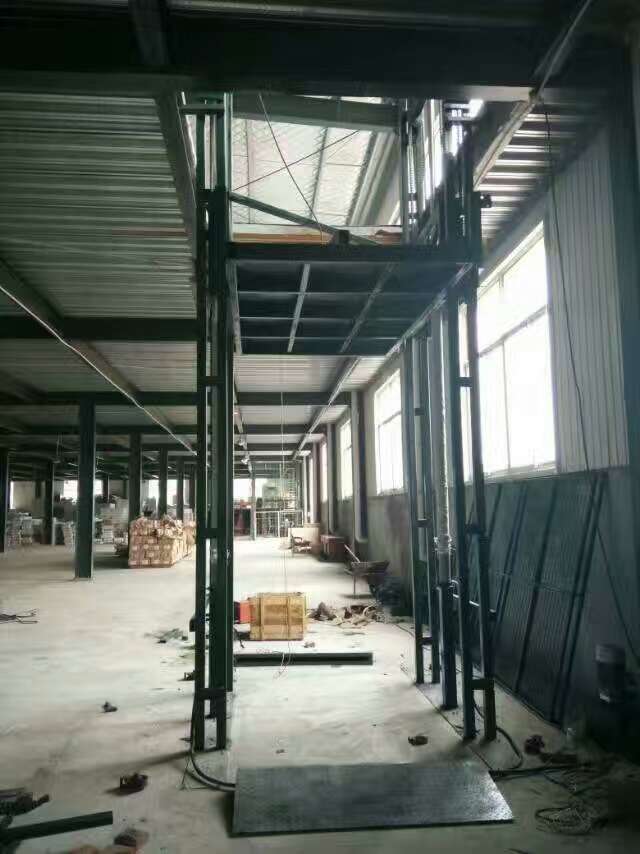

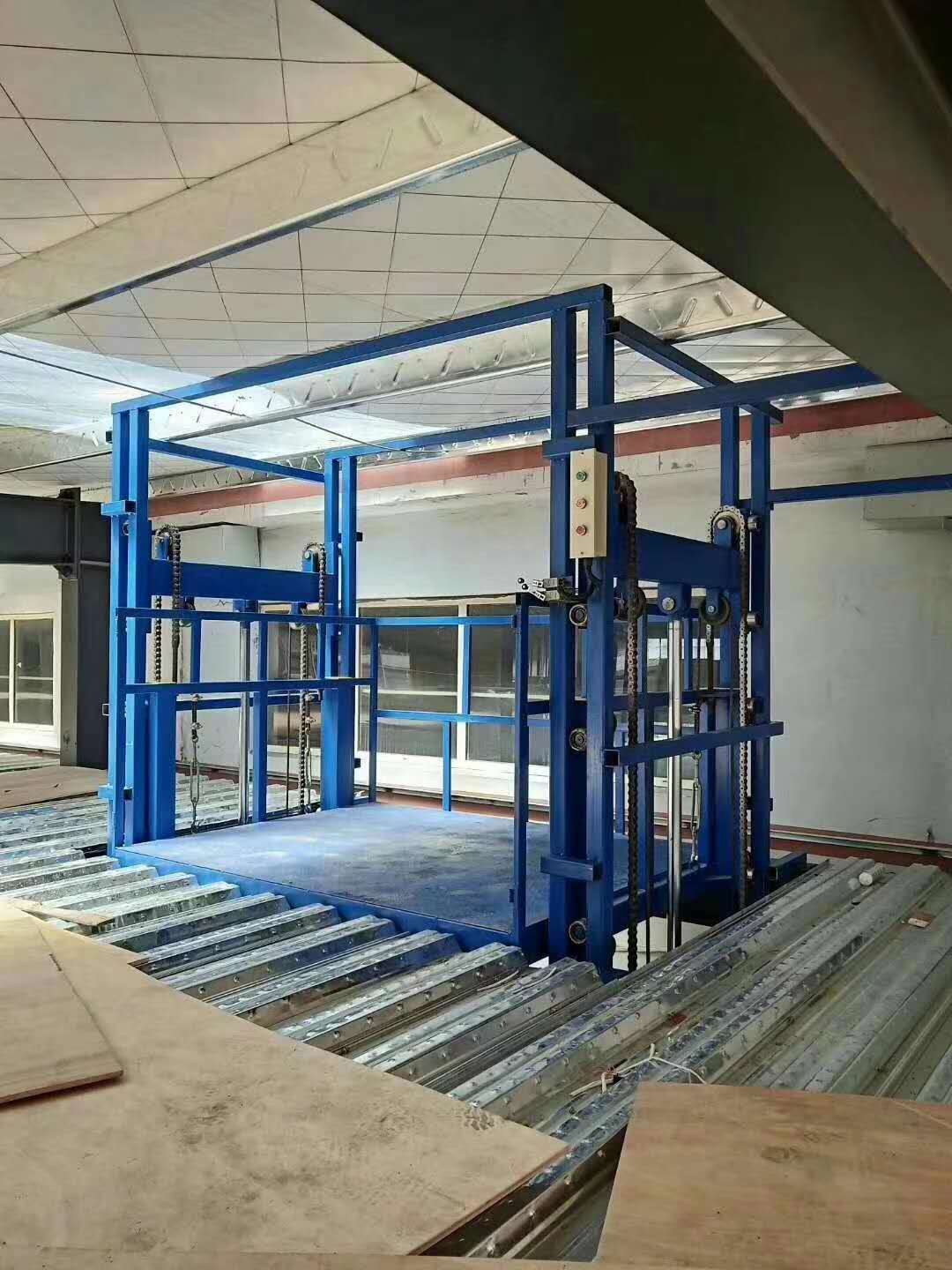

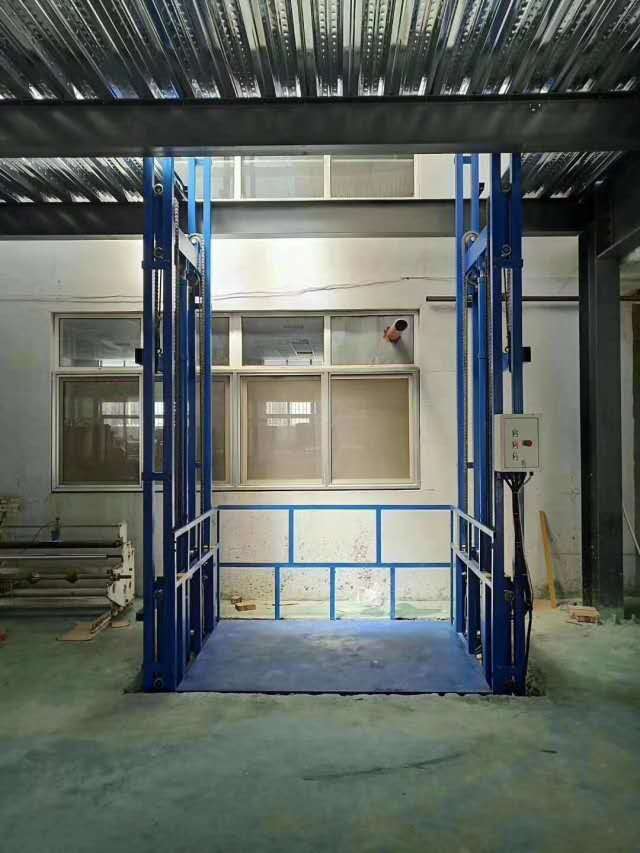

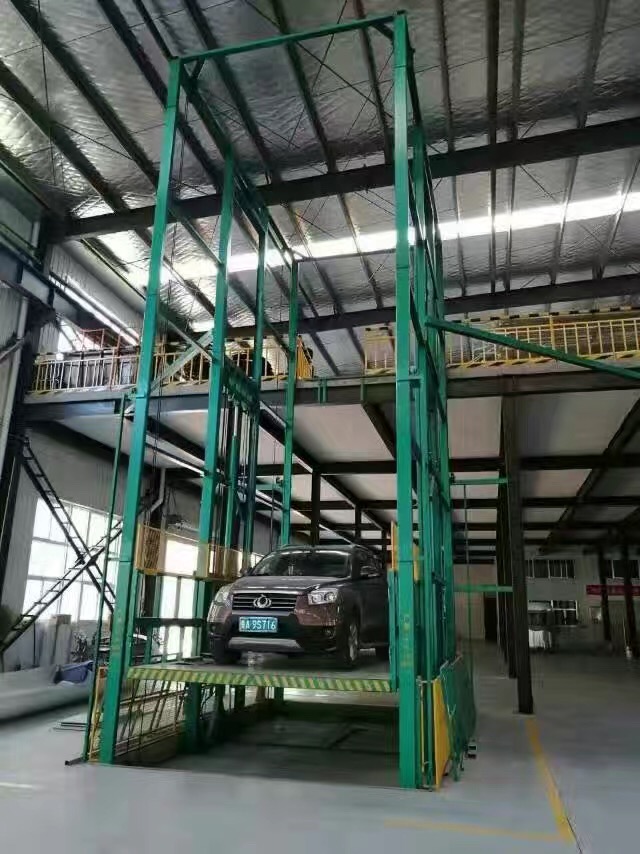

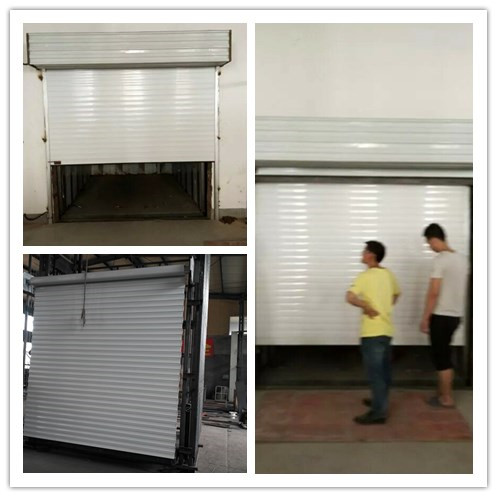

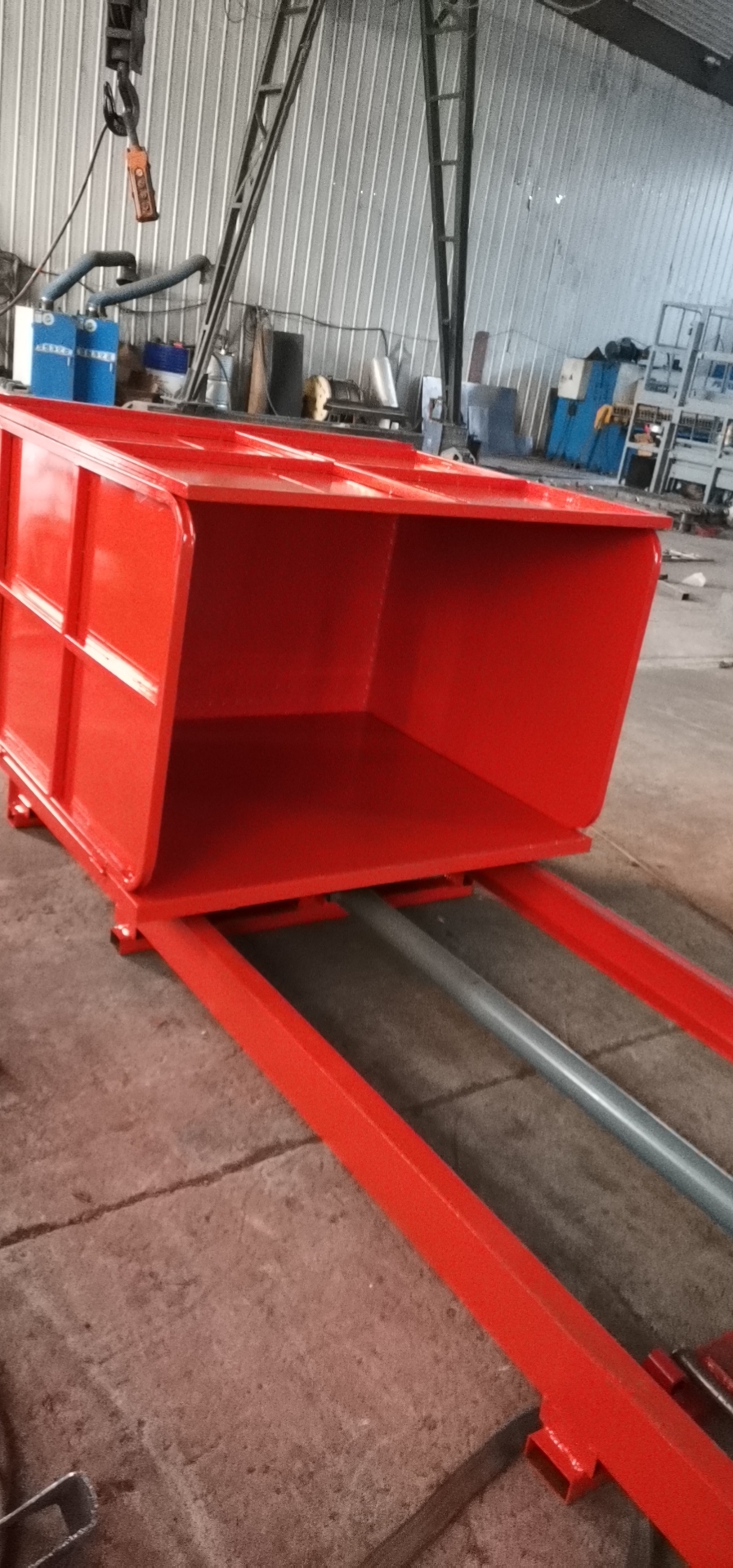

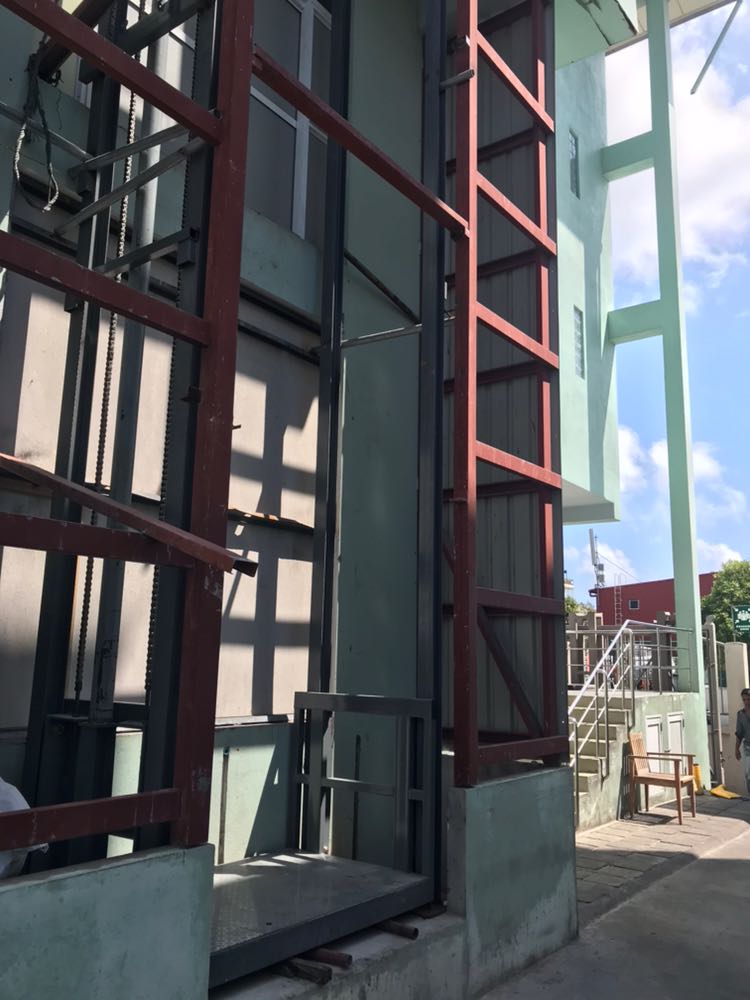

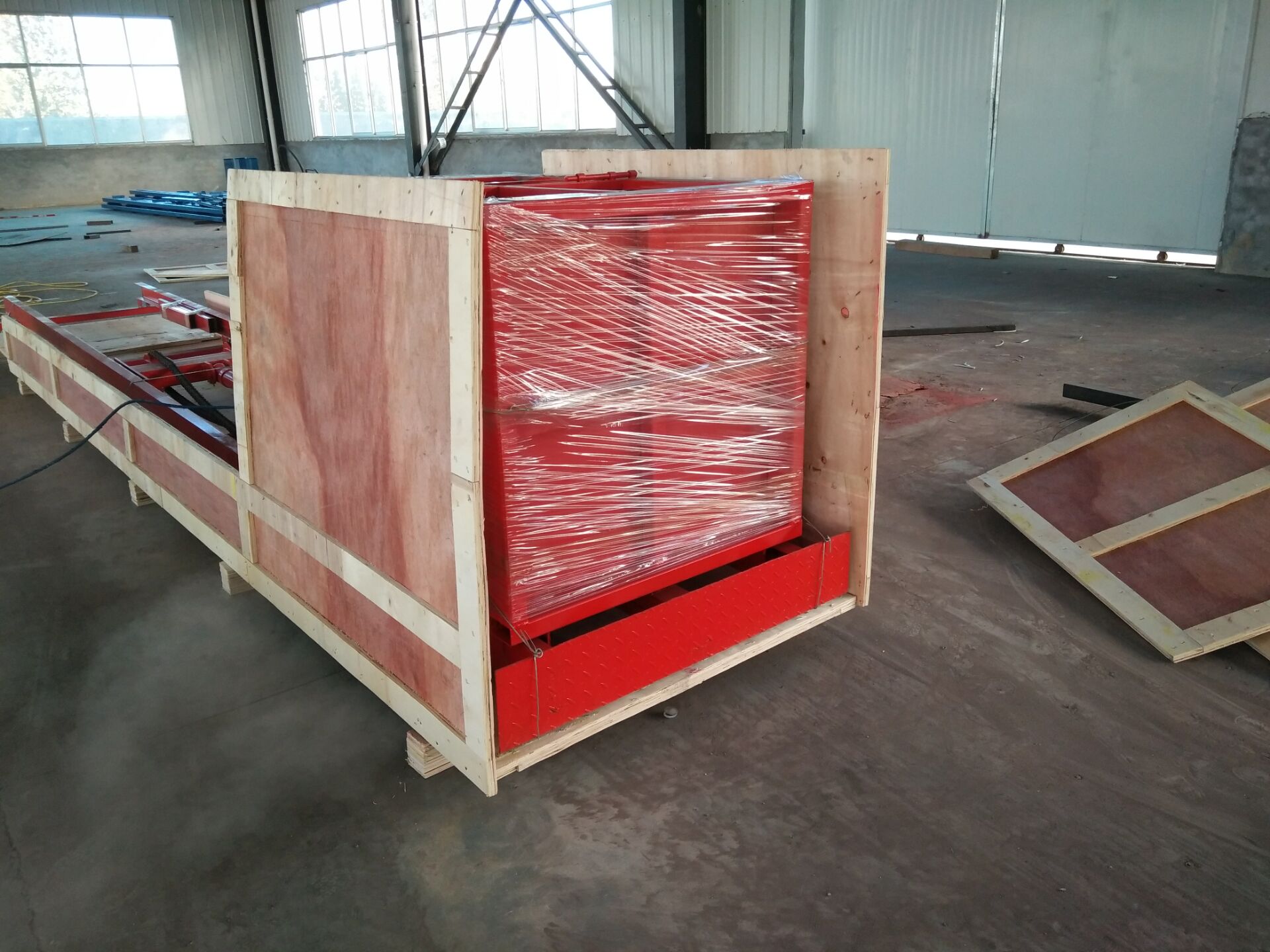

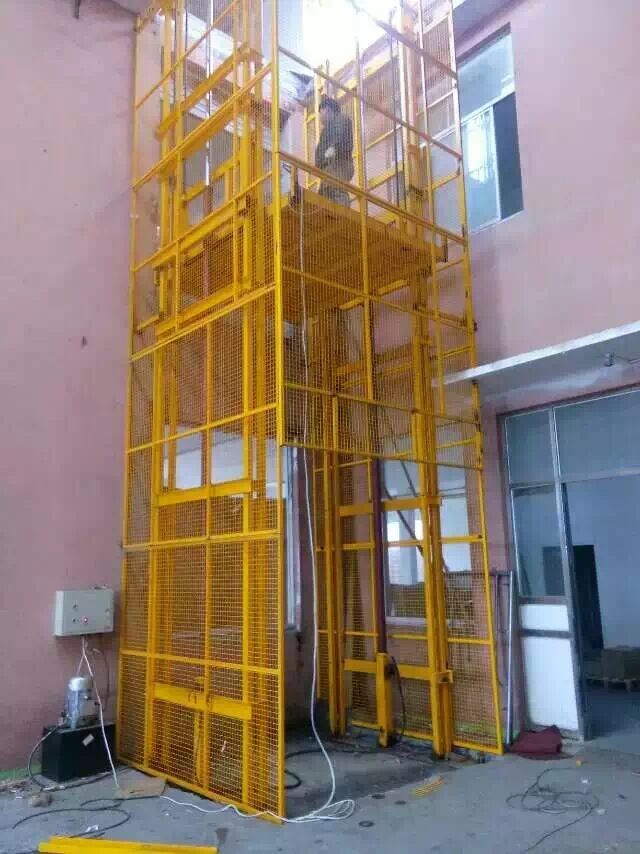

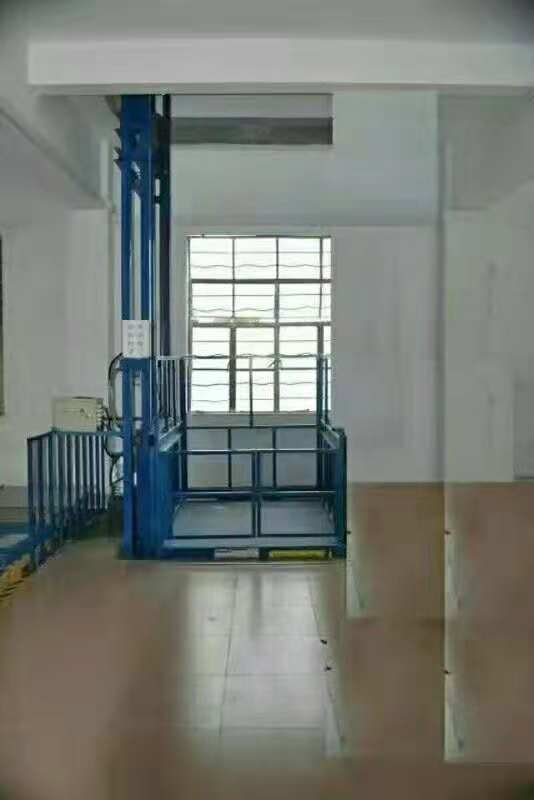

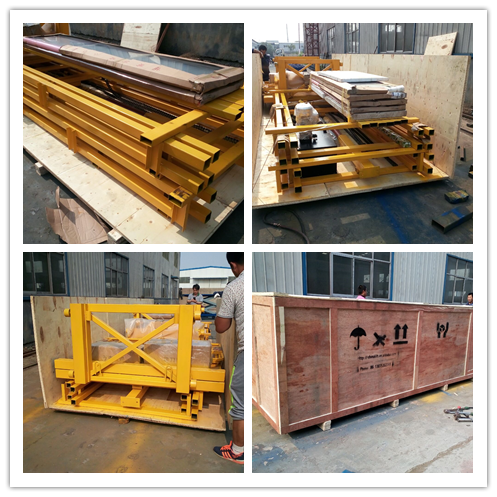

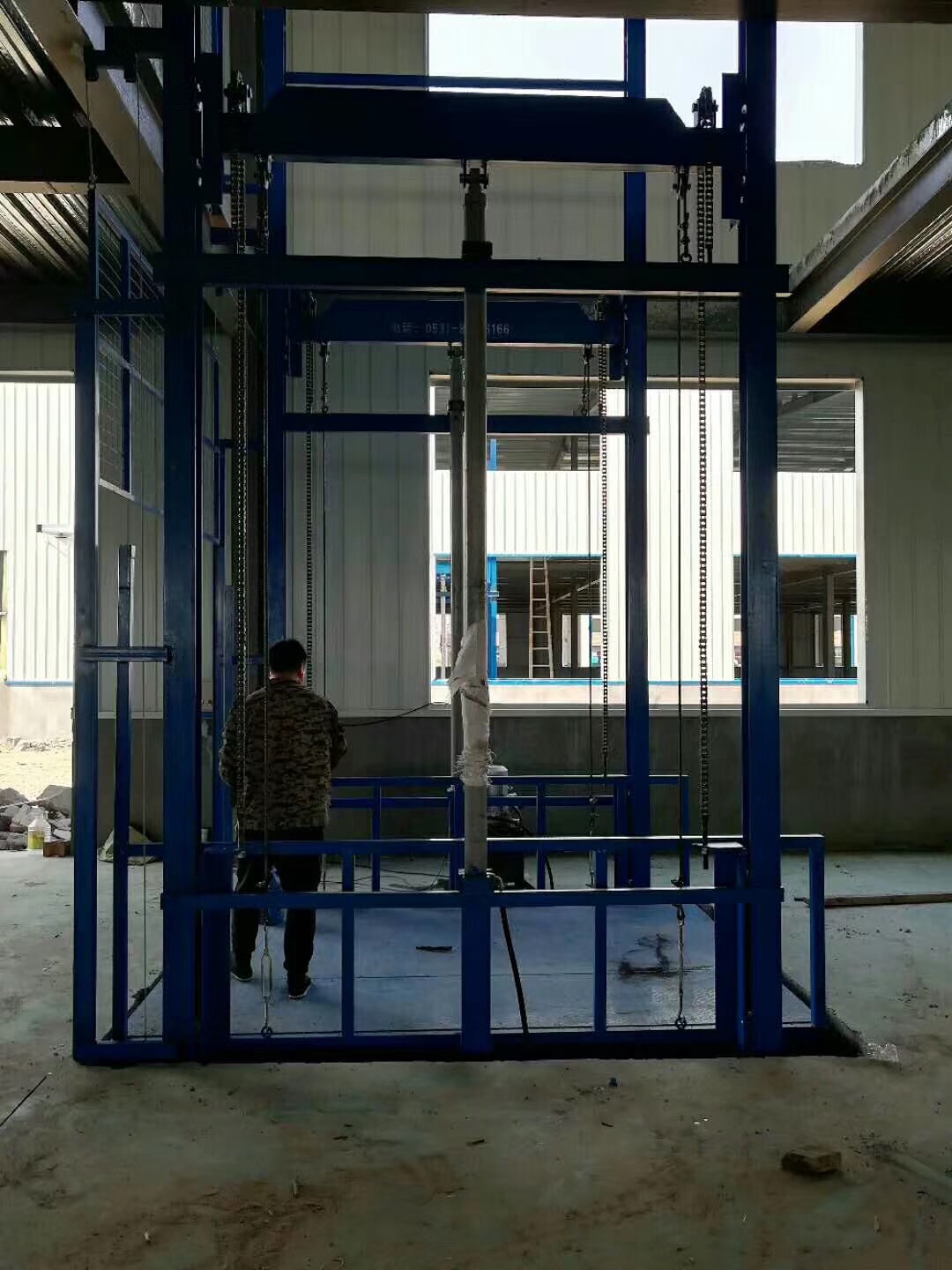

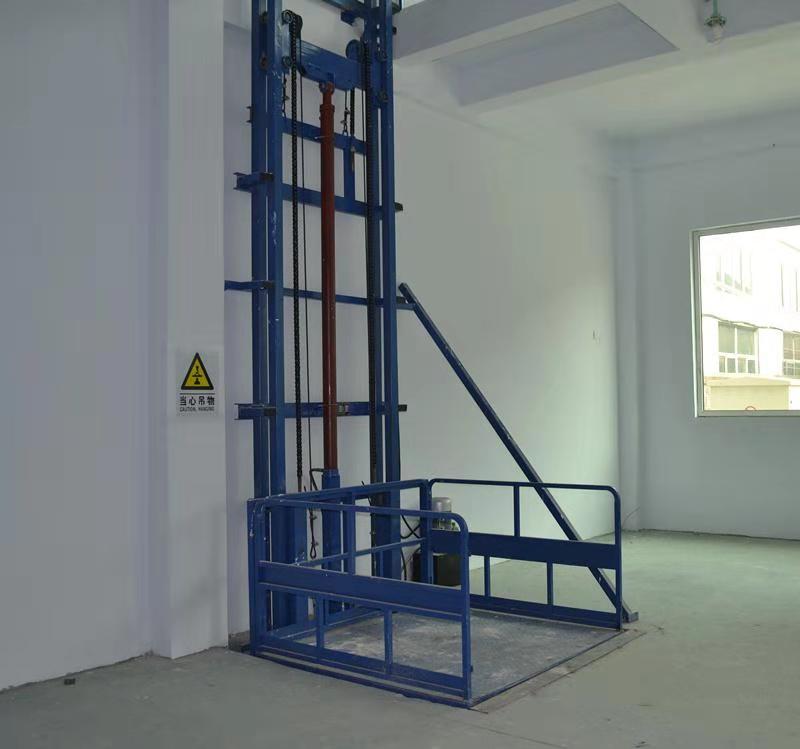

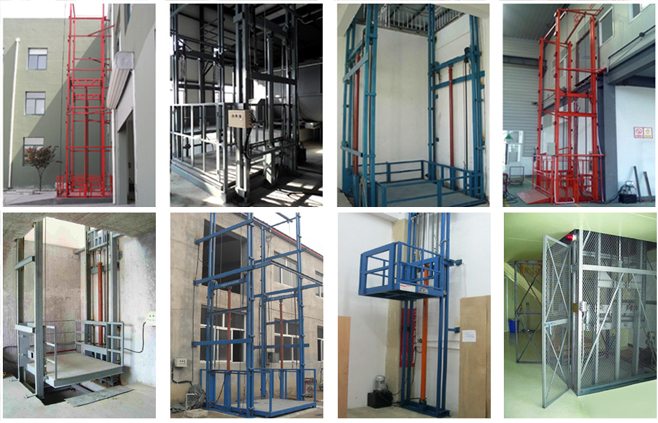

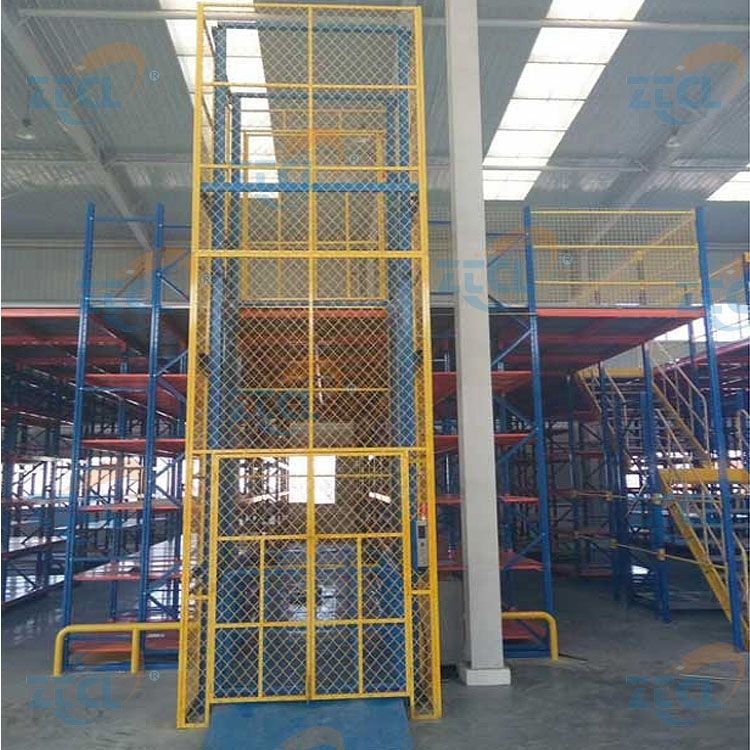

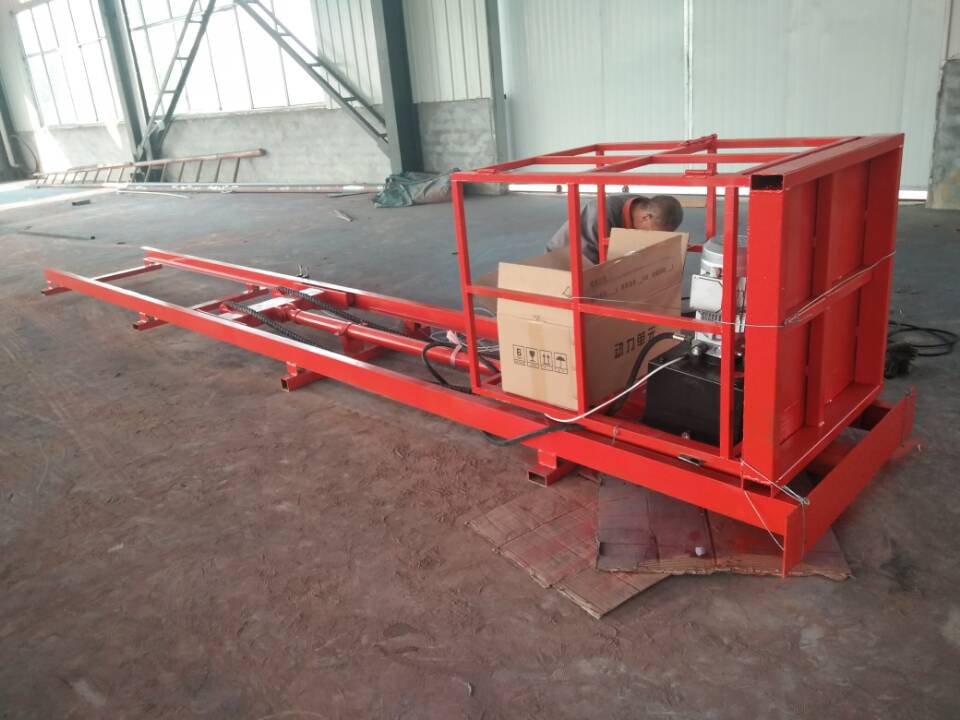

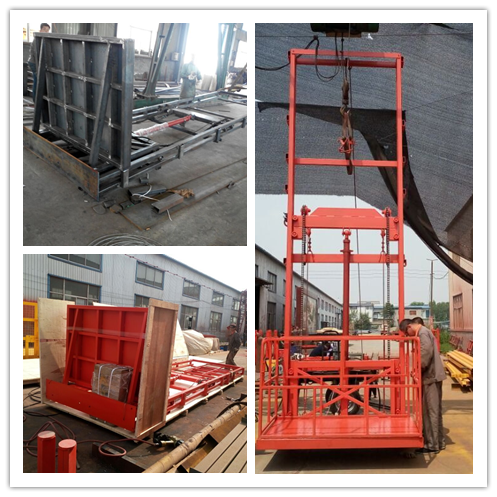

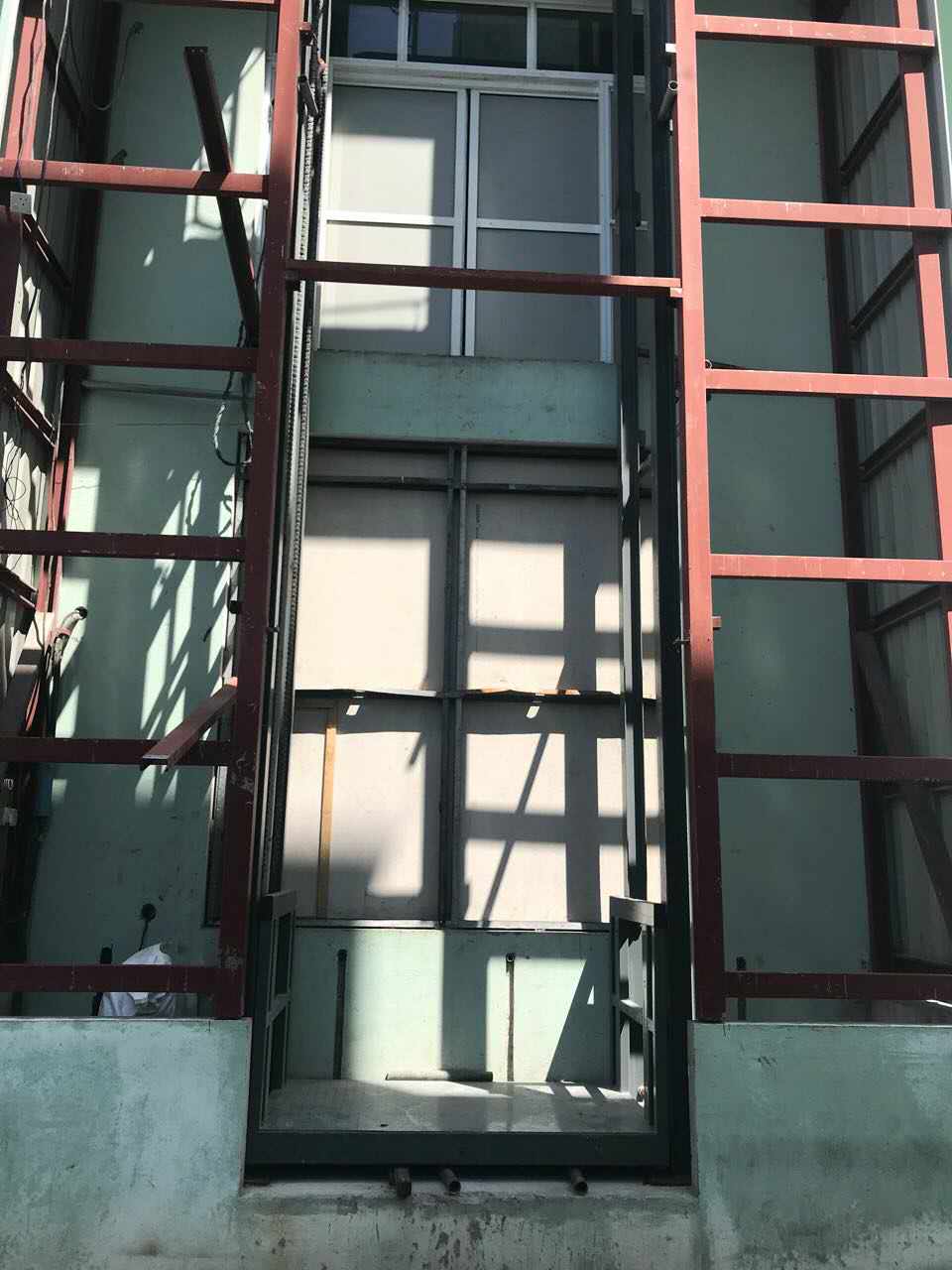

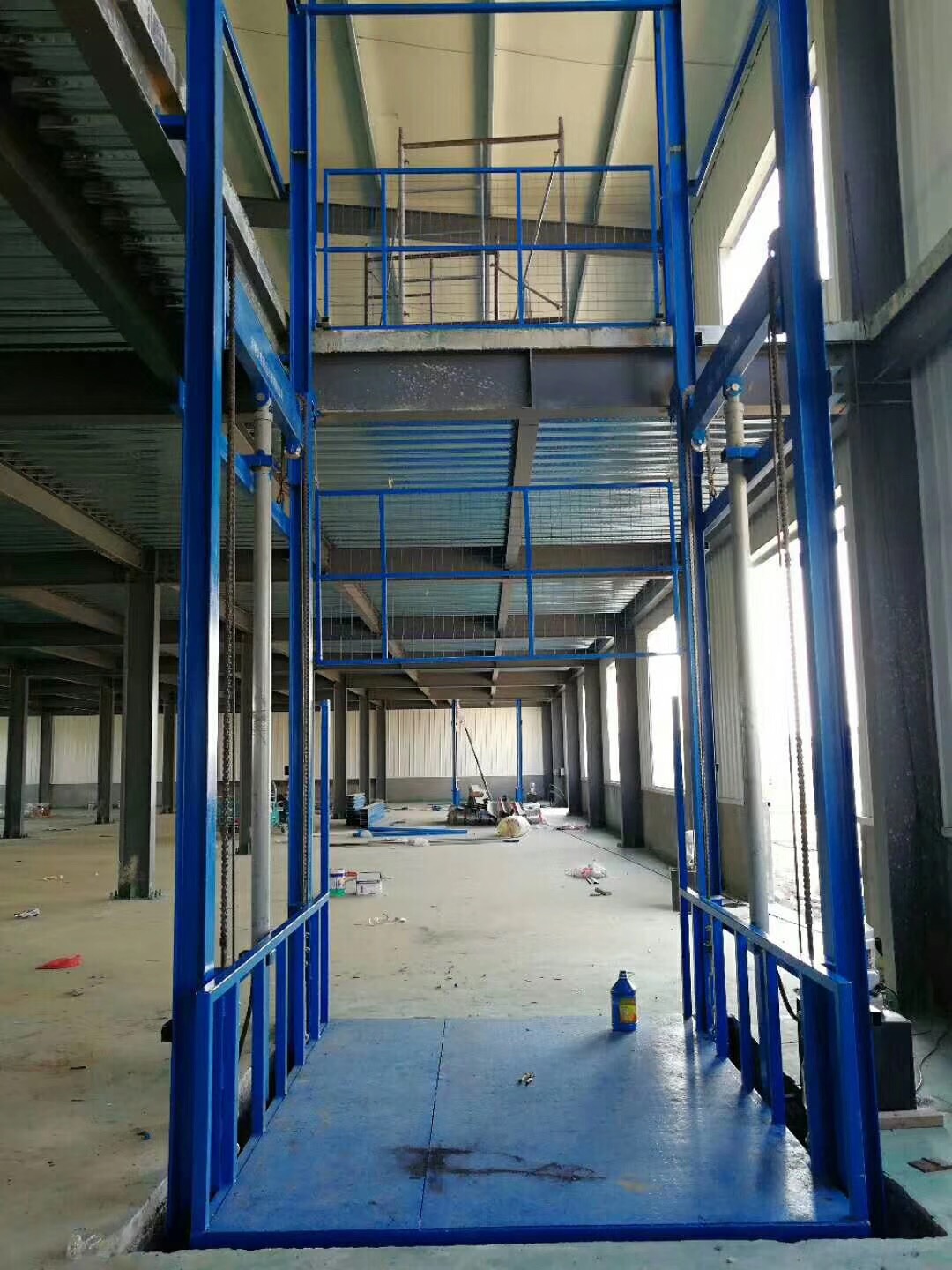

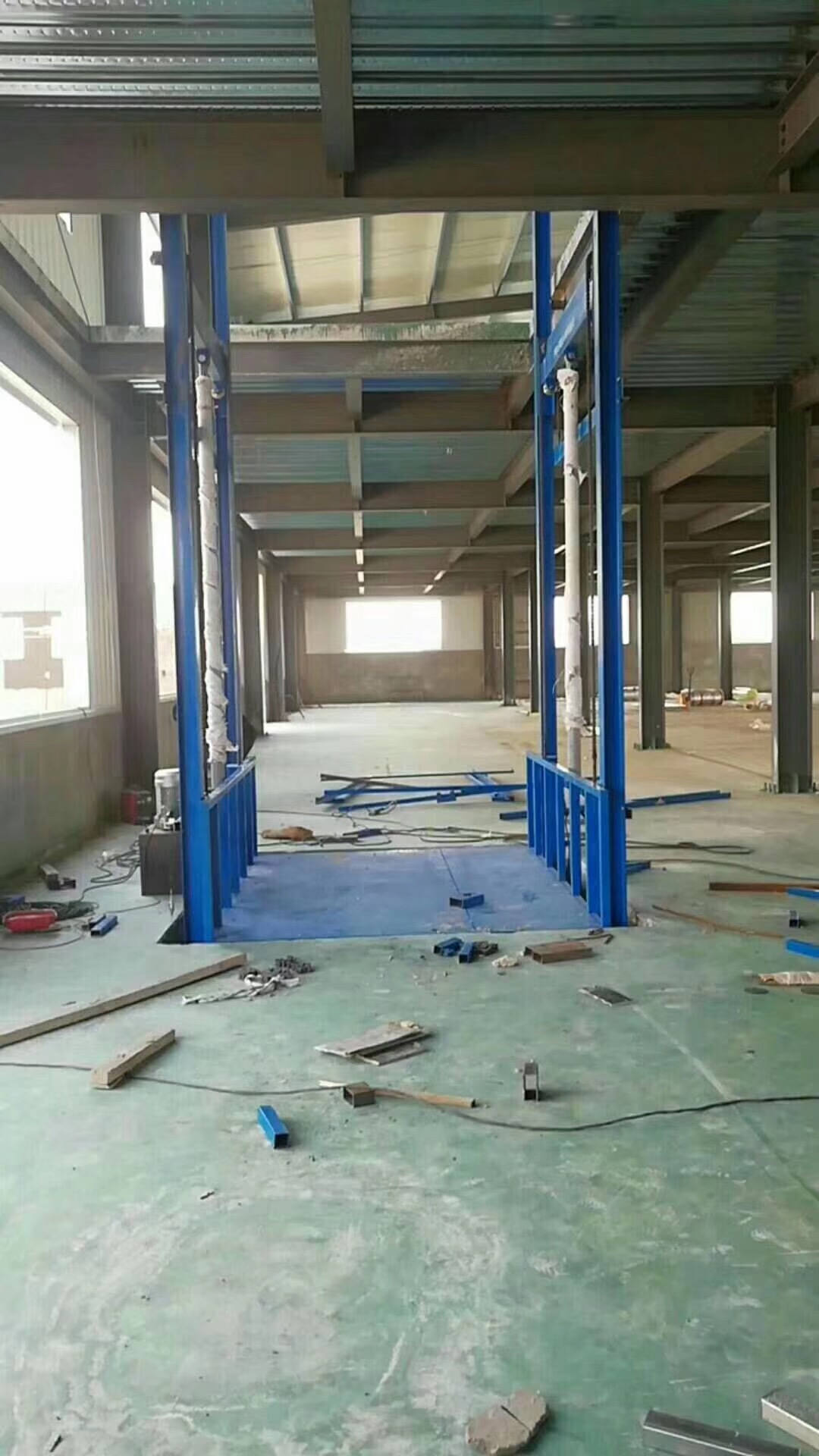

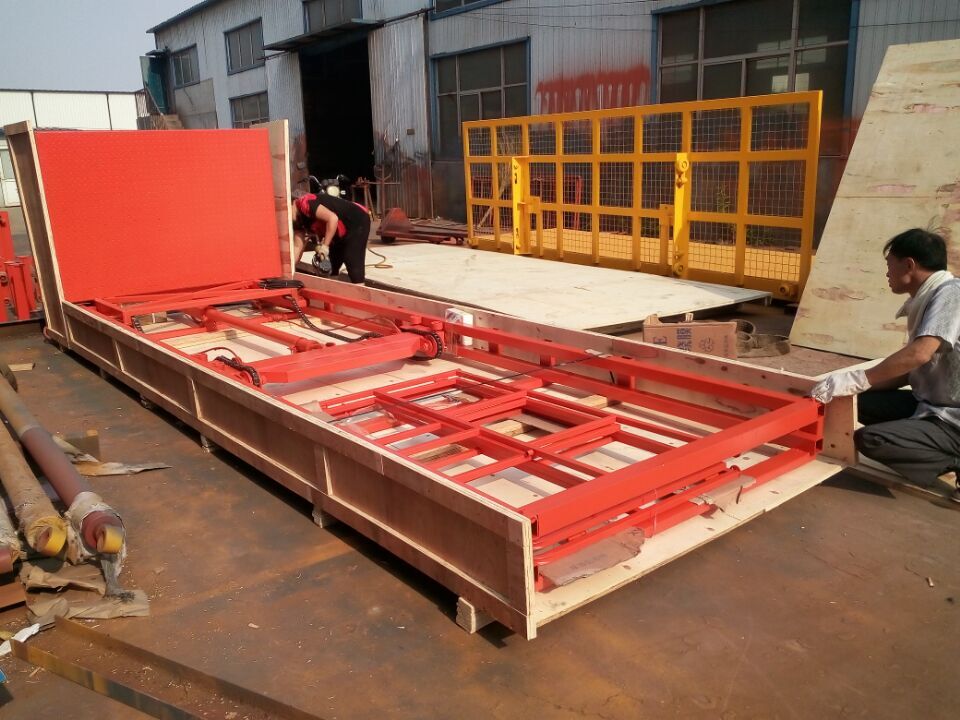

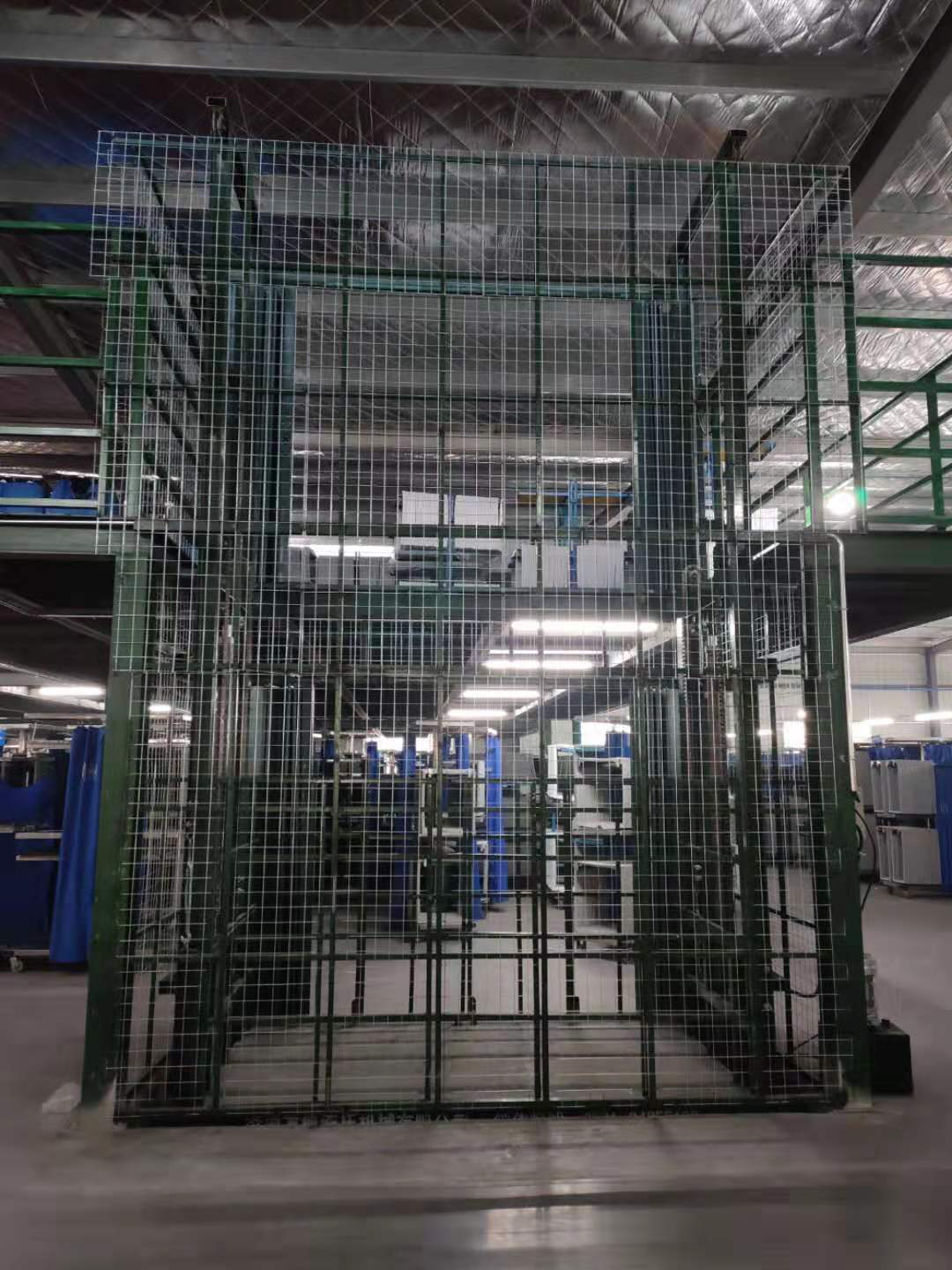

Pictures:
