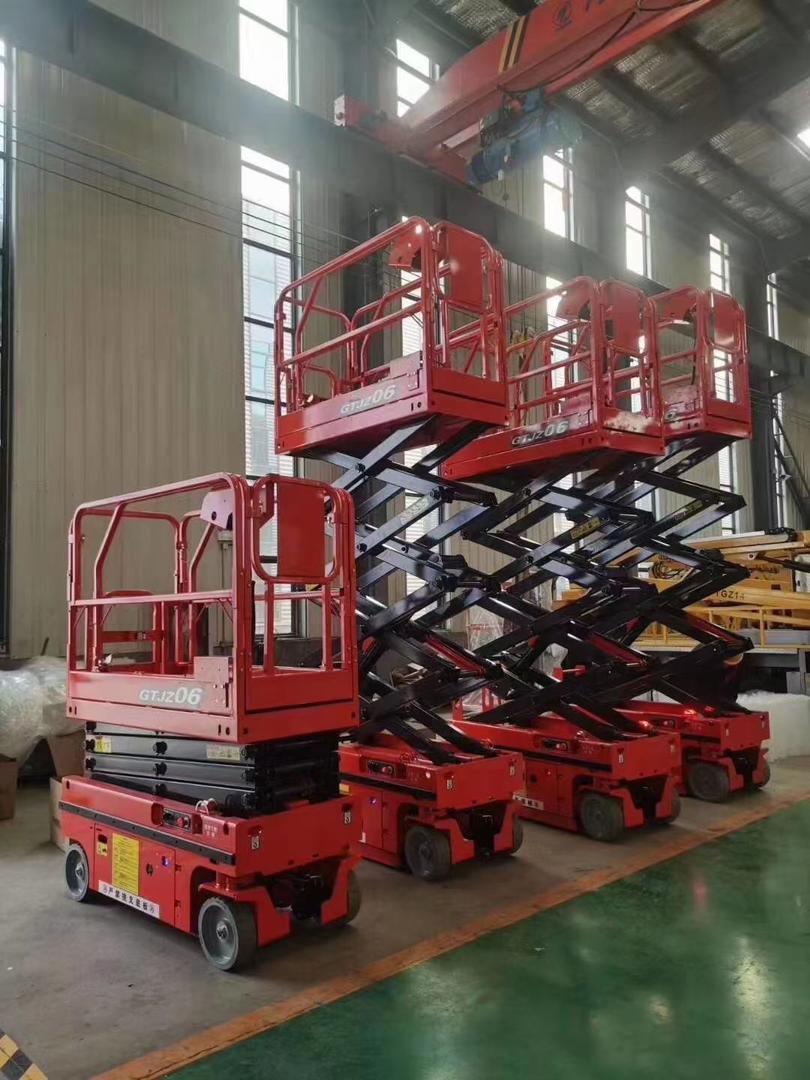

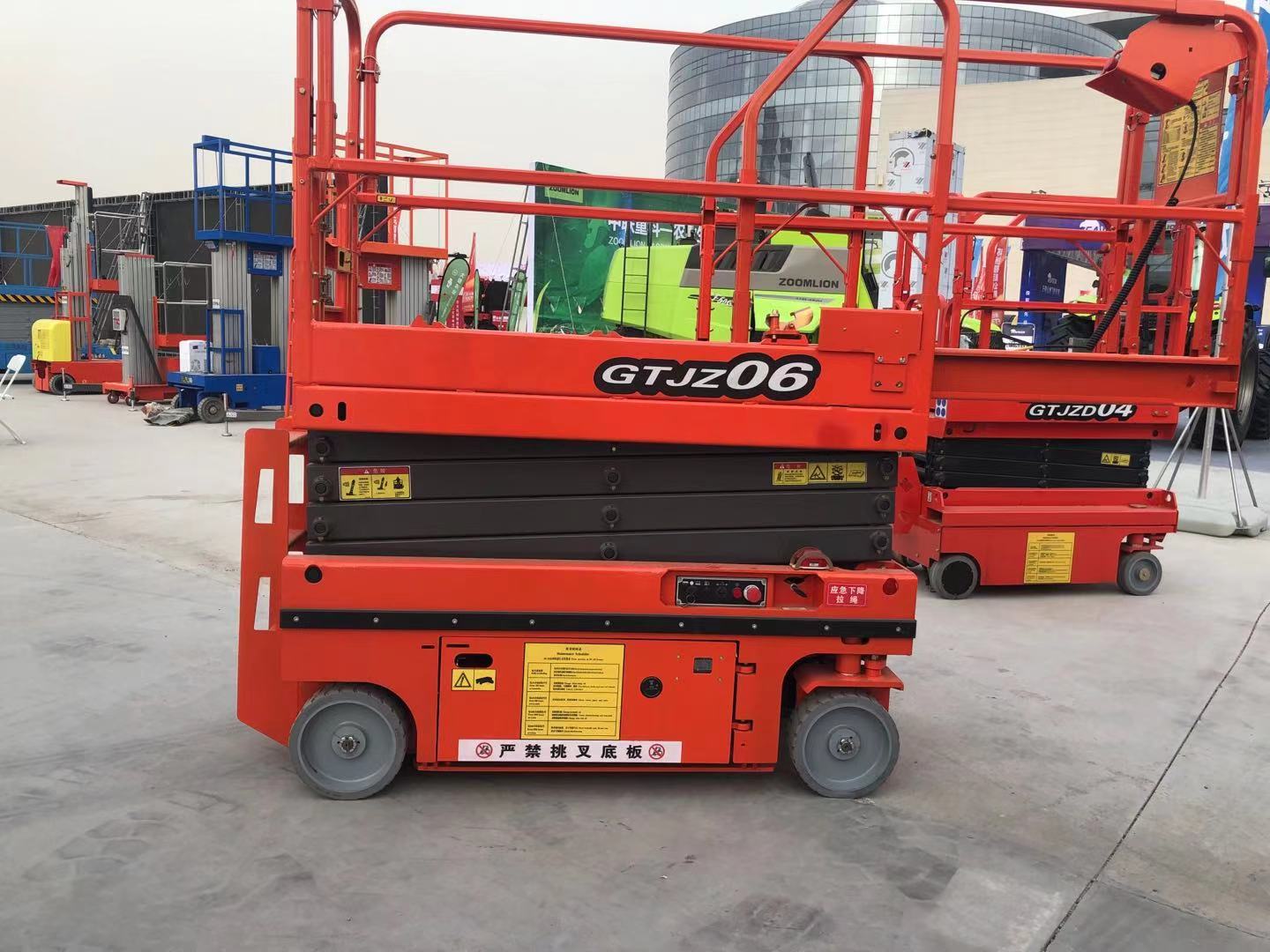

ZTGTJZ Self-propelled scissor lift

Home > PRODUCTS > Electric Scissor lift > ZTGTJZ Self-propelled scissor lift

ZTGTJZ0608M

TYPE : ZTGTJZ-6
Working height (m) : 8
Platform size (mm) :1670*740
Lifting height max (m) : 6
Working platform size (length × width × height): 1.67×0.74×1.1m
Overall dimensions (length × width × height
(The fence is not folded) : 1.86×0.76×2.18m
Overall dimensions (length × width × height
Fence folding) : 1.86×0.76×1.84m
Extend platform (m) : 0.9
Turn radius (m) : 1.64
Load (kg) : 230
Extended platform load (kg) : 120
Wheel ba<x>se (m) : 1.36
Ground clearance (mm) :100/20
Weight (kg) :1450
Grade ability : 25%
Machine tire Solid insulating tire Diameter:300mm Width:100mm
Lifting speed (m/min) :3-5
Walking speed（Stowed state）: 3.5km/h
Walking speed（Lifting state） :0.8km/h
Lifting DC motor power : 24V/3.3kw
Storage battery : 4×6V/225ah
Charger : 24V/30A
Tires: Φ305×100mm
Platform 4mm thickness antiskid insulating checkered plate
Maximum working angle :1.5°/3°
Hydro-cylinder Number:Two sets Diameter:80mm
Hydraulic unit :Italian Hydrappp brand
Control system :Full function control cabinet on the platform table

PRODUCT DETAIL

ZTGTJZ 0608Self propelled hydraulic scissor lift is widely used for installations and maintenance At

the following places like construction sites workshops,warehouse,granary,bus/railway

stations,hotels,airports,gas station and aerial pipeline,etc.

Main configuration:

1. Battery: Qiu Jian, USA, type T105 or Mingtai 210

2. Motor: Swiss Buch (pump displacement 3.5ml / r)

3. Motor: American White, displacement 230ml / r

4. Brakes: American White

5. Main valve: Shenzhen Sant

6. Controller: Hunan CLP Canplus

7. Hour meter: Honeywell, USA

Material:

safety fence	35mm * 35mm square tube
mesa	Anti-slip pattern board 3mm
support	Rectangular tube: 125mm * 75mm * 5mm material Q345 manganese steel
Underframe	Steel plate welding
Link pin	Oil-free bearings
Hydraulic cylinder	2 pcs Hebei Hengyu
Power battery	Torch
Hydraulic oil	Great Wall N46 # anti-wear
Electronic control system	Lecan
Hydraulic drive system	Dali
Main valve	Eaton
Motor pump	Guo Rui
Battery	Torch
charger	Samet
Tires	Bonded solid tires grey
Surface treatment	Spray processing
