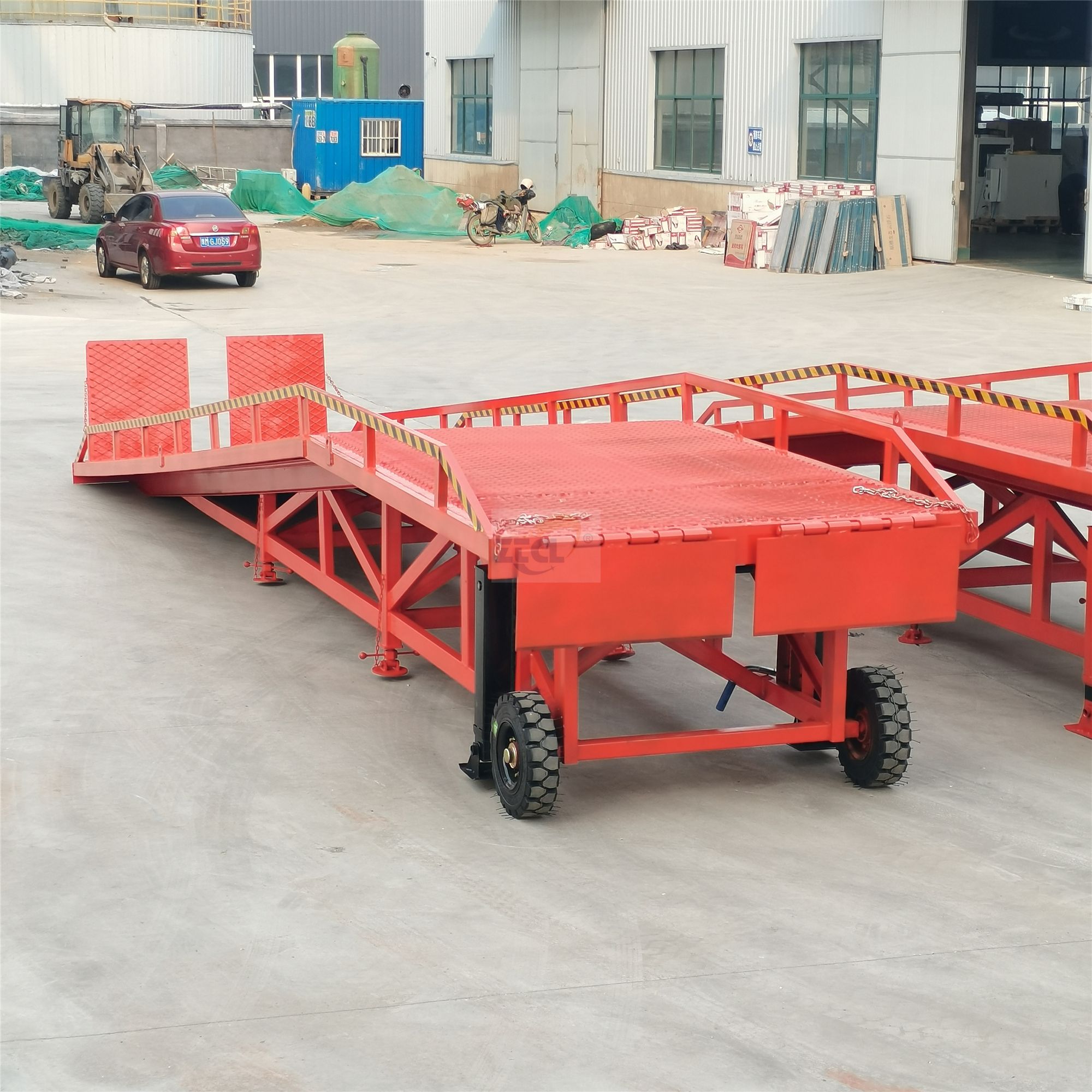

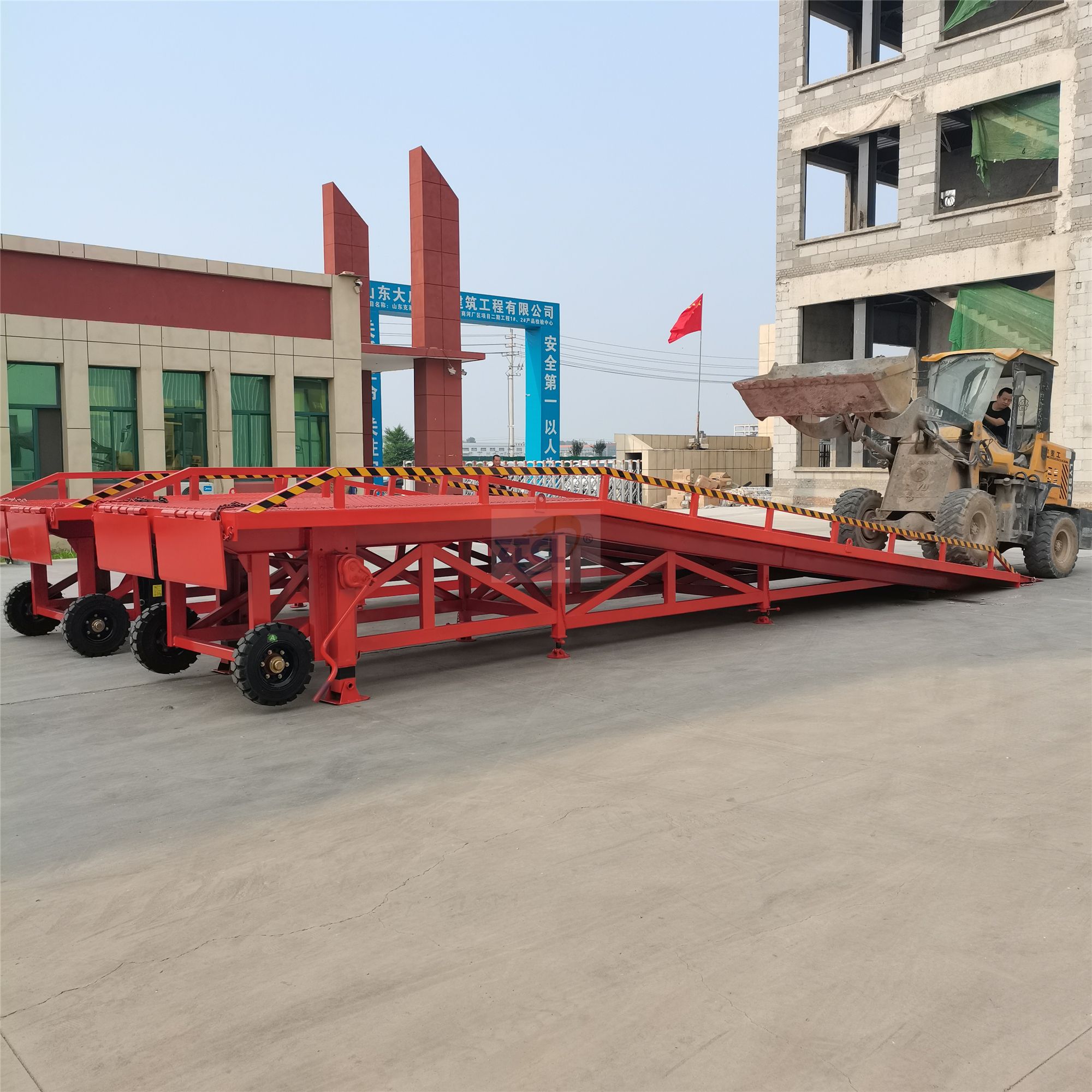

    ZTCL heavy capacity mobile loading ramp with supporting rod

    ZTCL Mobile hydraulic dock leveler is cargo handling and forklift with auxiliary equipment to use, adjustable height according to the level of automobile car, truck directly through the device into the interior of the bulk cargo handling, only a single person operation, you can achieve rapid loading and unloading of goods. It enables companies to reduce a lot of labor, improve efficiency, to obtain greater economic benefits.

    PRODUCT DETAIL

    Technical data:

    Loading capacity: 10T

    Min height:1200mm

    Max height:1750mm

    Mobile ramp dimension(Tilt ramp 7000mm; floor ramp 3000mm; tongue plate 400mm；tailgate 900mm)

    Ramp width:2100mm

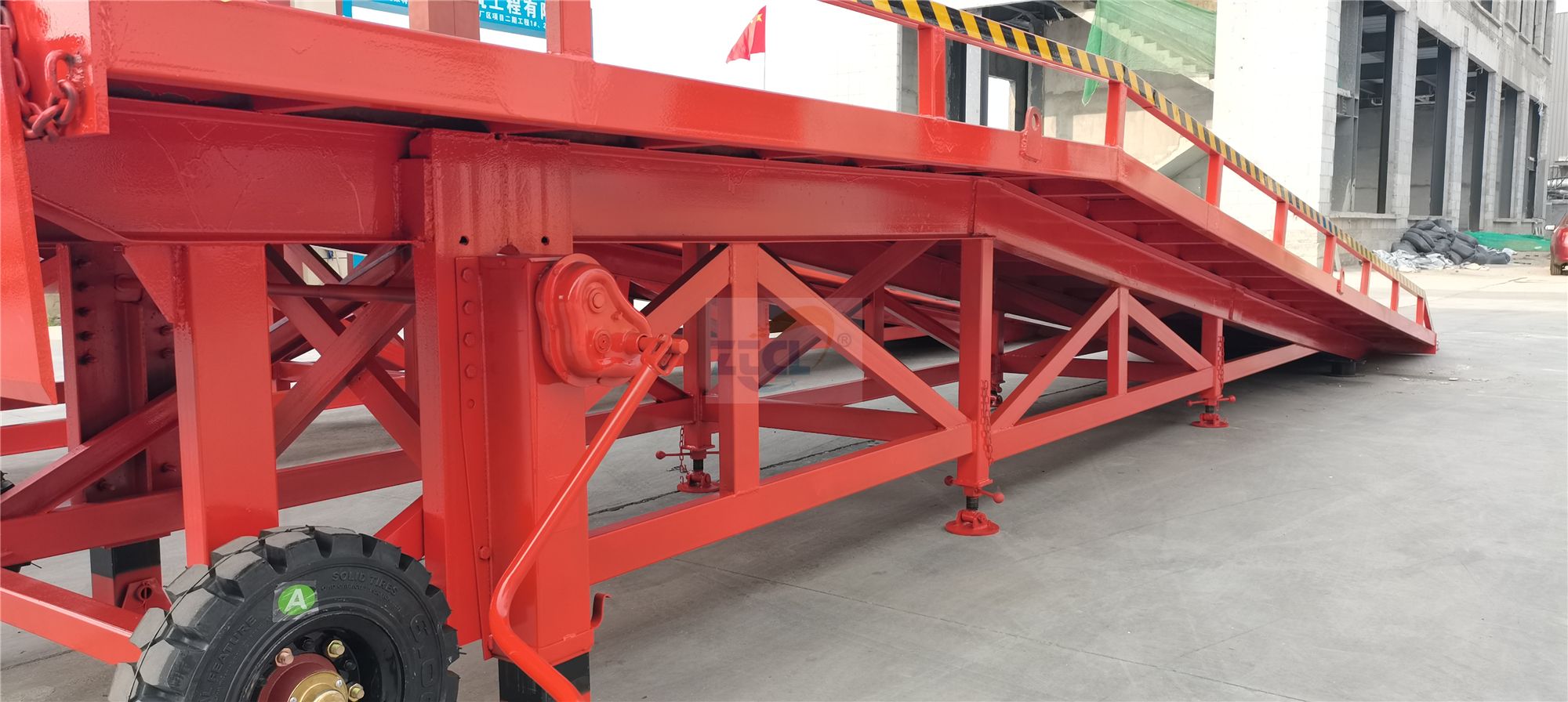

    Main beam:18# steel

    Auxiliary beam:100*50*4 Rectangular tube

    Frame: The main beam is covered with 8# channel steel, the spacing is 400mm

    Guardrail：40*60 ,height 260mm

    The deck of the boarding bridge is 4mm steel plate

    Diamond-shaped anti-skid net on the panel: 8mm

    Stiffener:80*40mm

    Tires: 600-9 solid tires

    Lifting support legs: Jinhua brand
