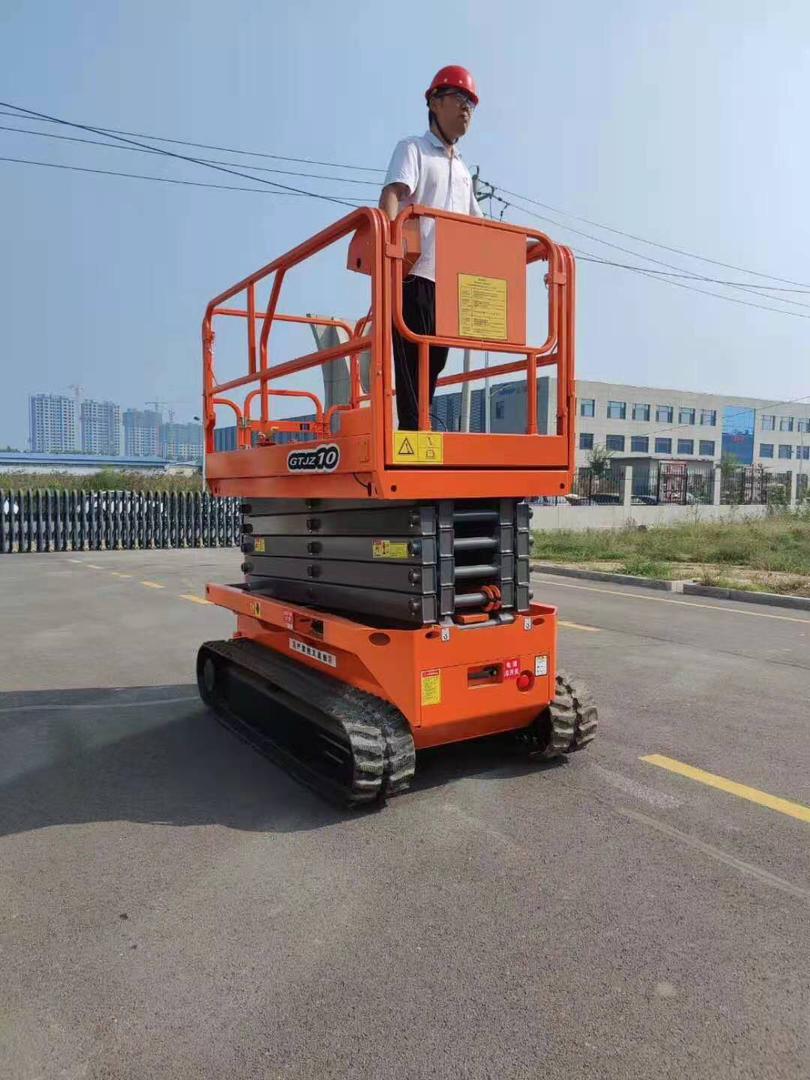

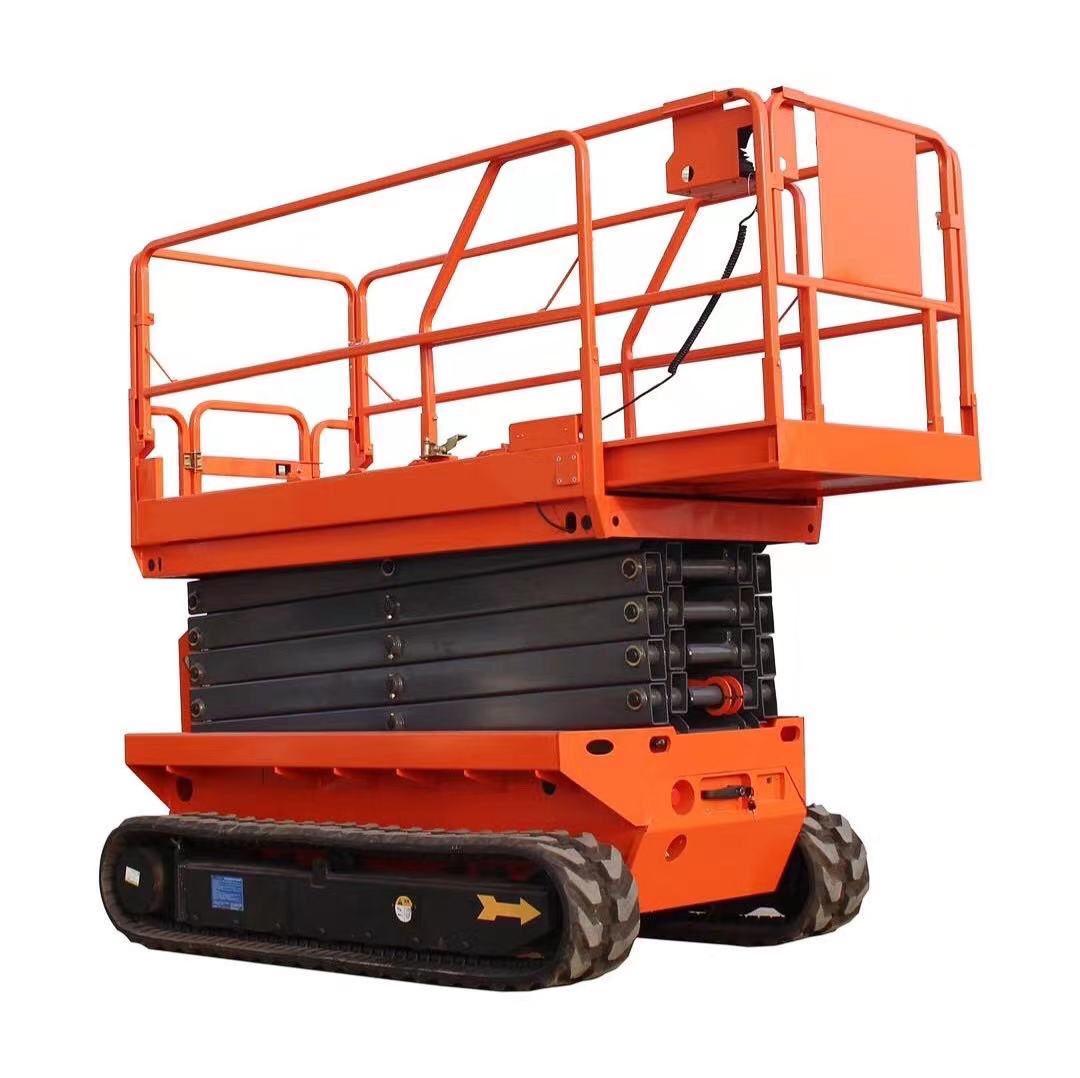

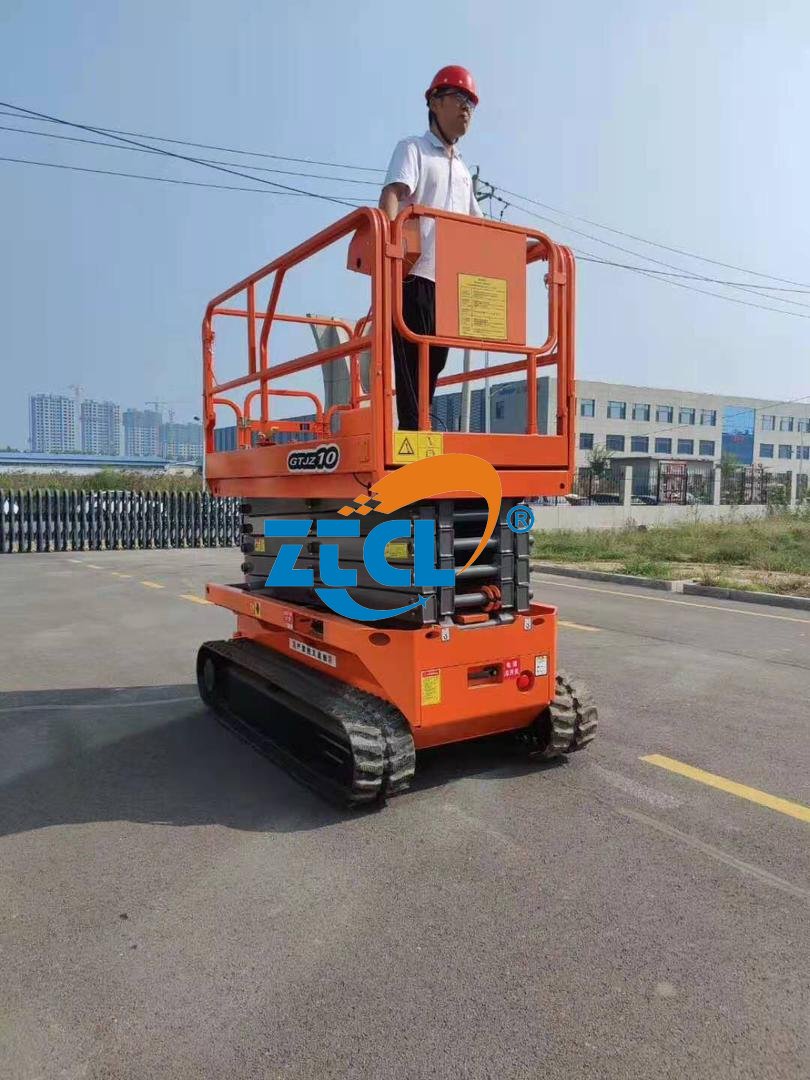

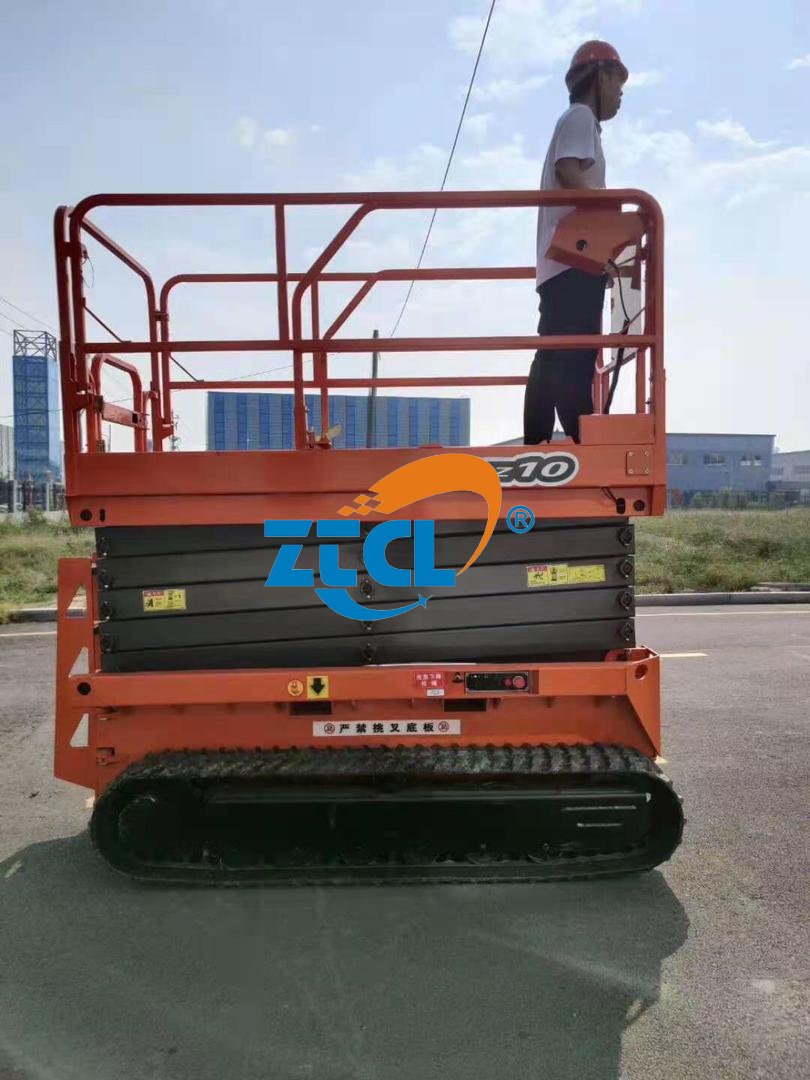

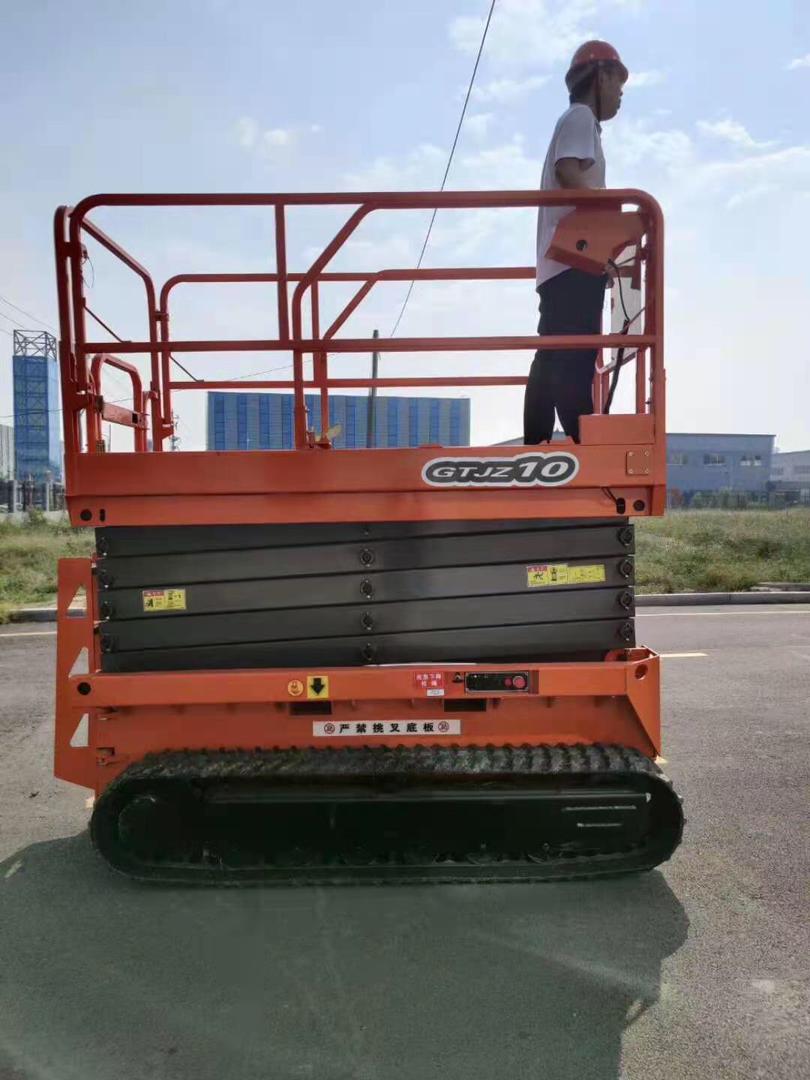

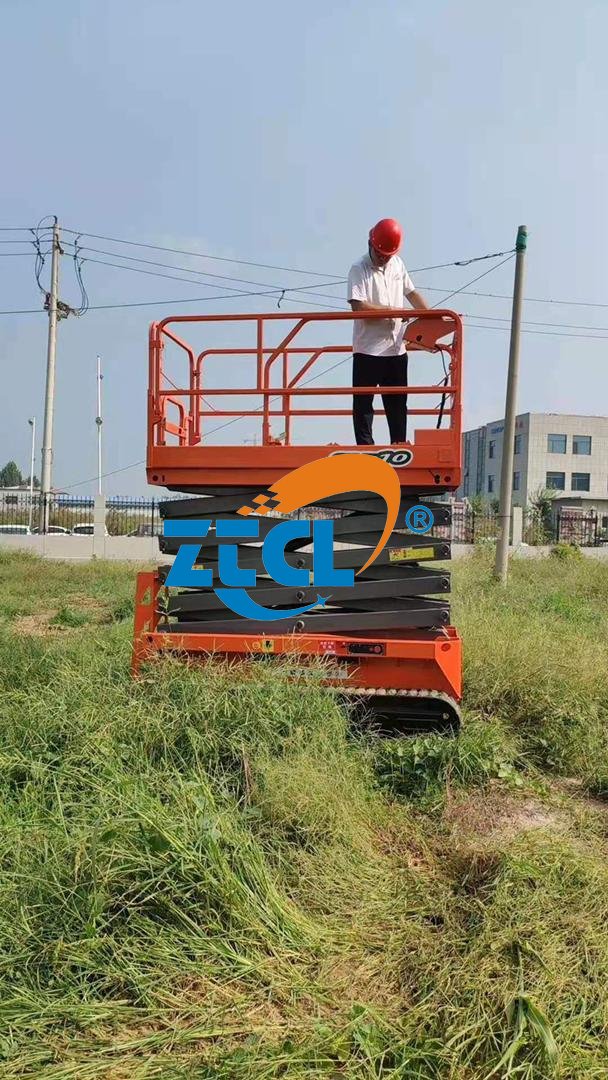

ZTPT1012M Crawler type scissors lift

ZTPT1012M Crawler type scissors lift
1. The basic parameters of the product:
Basic parameters Unit ZTPT1012
Safe working load Kg 300
Extended platform safe working load Kg 113
Maximum working height (H2) m 11.05
Maximum platform height (H1) m 10
Overall length mm 2518

Overall width mm 1390
Overall height (fence not folded) mm 2551
Overall height (fence folding) (H) mm 2021
Working platform size mm 2271X1110
Platform extension size mm 900
Minimum ground clearance (closed state) mm 0
Minimum ground clearance (lifting state) mm 0
Wheelbase mm N/A
Minimum turning radius mm 0
Lifting motor V/Kw 48V/3KW
Machine running speed (closed state) Km/h 1.8
Machine running speed (lifting state) Km/h 0
Ascent/descend speed sec 84/38
Battery V/Ah 8x12/100
Charger V/A 48/40
Maximum climbing ability% 30
Maximum allowable angle of work. twenty three
Machine weight Kg 3150

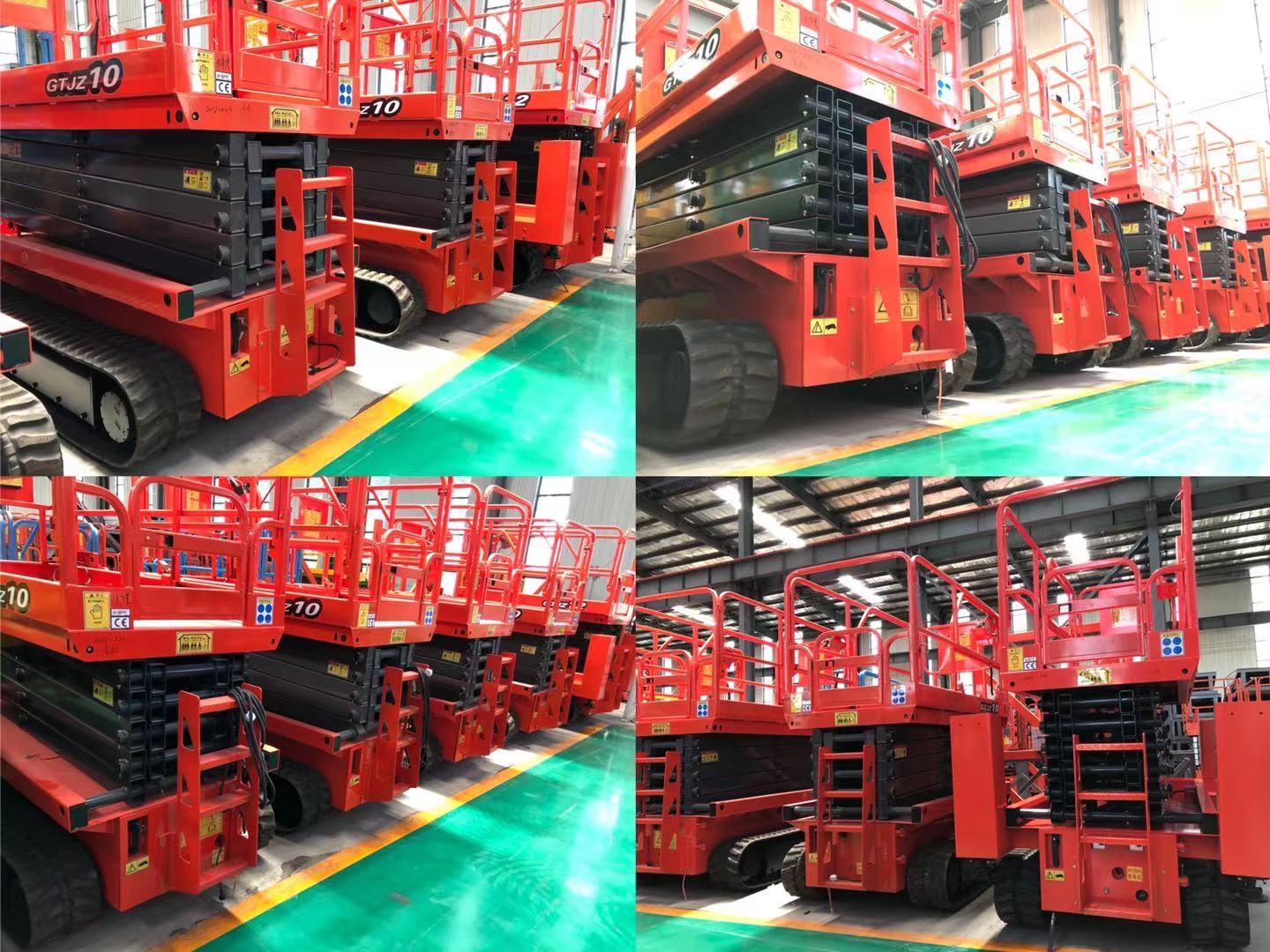

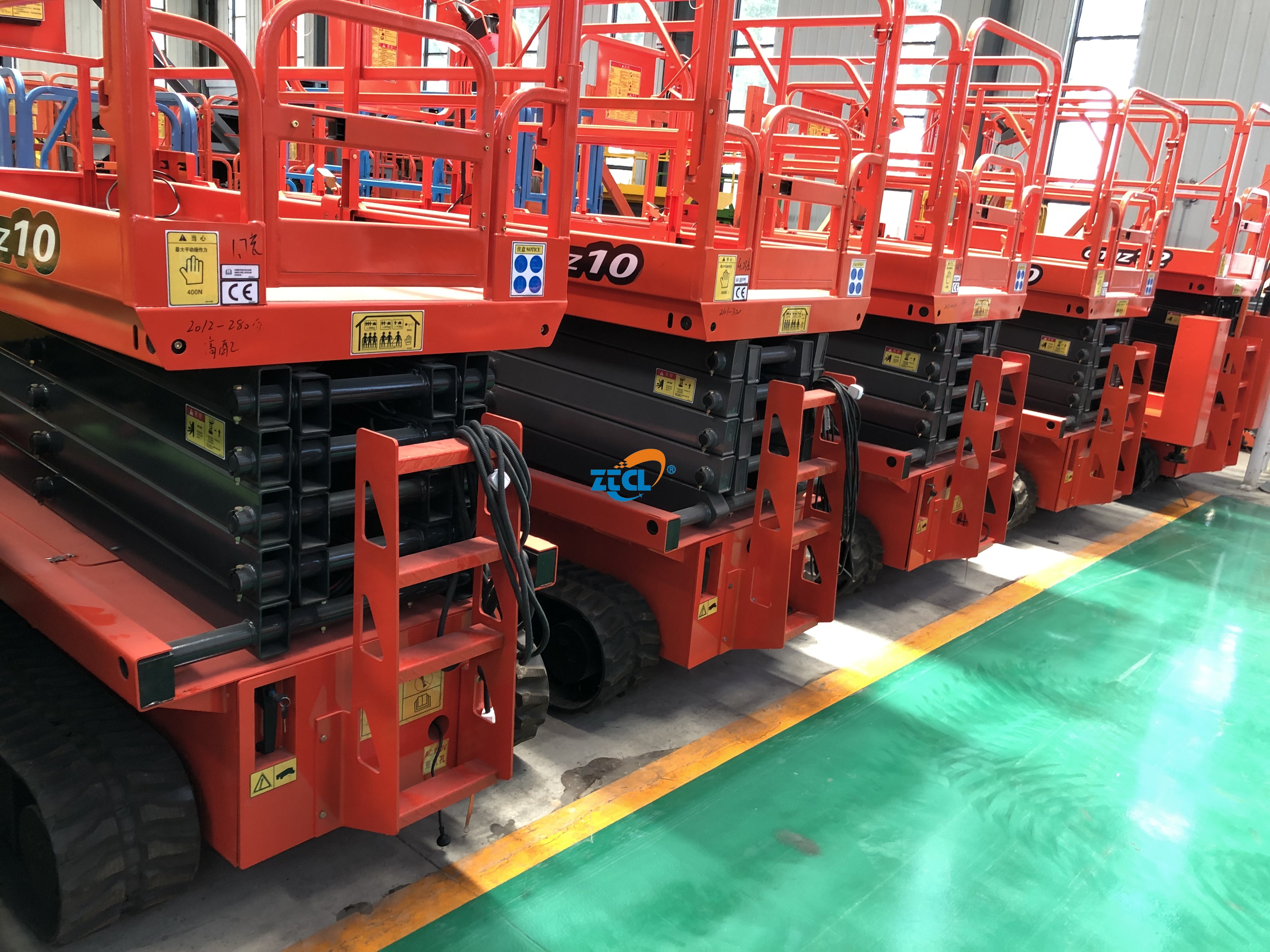

PRODUCT DETAIL

ZTPT1012 Technical parameter:

Number		Item		Data

1	Lifting height			10 m

2	Working height			12 m

3	Dimension			251813902021mm

4	Guardrail height			1050mm

5	Grade ability			30%

6	Platform extension:			900mm

7	Extension platform capacity:			113kg

8	Operating speed		Stowed	<=1.8km/h

9			Raised	<=0 km/h
9			Raised	<=0 km/h

10	Power			Battery driven

11	Control system			C101

12	Tyre			Rubber track

13	Lifting motor			48V/3KW

14	Weight			3150kg

15	Battery			8*12/100 V/Ah

16	Track width			35cm

17	Charger			48/40 V/A

Product Materials:

Safety Guardrail:	Adopt 35mm*35mm square tube
Platform:	Spread anti-slip pattern board 2.5mm
Support rod:	Moment tube: 125mm75mm5mm material Q345
	manganese steel
Chassis:	Q235 steel plate welding
Link pin:	Salt bath nitriding
Hydraulic cylinder:	2 pieces
Power storage battery:	Torch brand
Hydraulic oil:	Great Wall brand
Electronic control system:	Medium electric control system
Surface treatment:	Spraying plastics treatment
Motor reducing gear:	Keya Electronics
Machine controller:	Keya Electronics

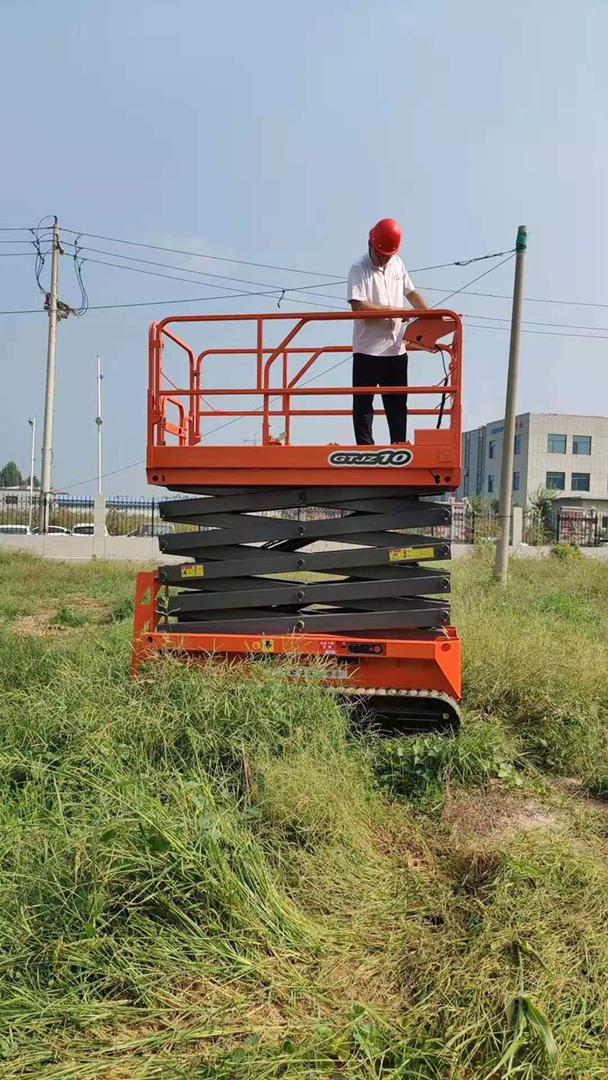

Characteristic:

l Be able to drive at maximum height

2 Maneuverable, extremely easy to use;

3 Safe ground clearance for indoor/outdoor Operation

4 Robust, reliable and easy to maintain

5 Standard feature

6 Non-marking wheel

7 Double wheel traveling speed

8 Flexible turning unit

9 Emergency lowering device

10 Swing-out tray

11 Pothole protection device

12 Emergency release brake

Product main configuration:

1. Italian Hydraulic brand hydraulic unit, which is small volume, compact structure, lower noise, safe and reliable.The highest pressure can reach 30 Mpa, The service life of pump can reach about 500000 times when the pump continuous works.

2.Domestic famous hydro-cylinder , sealing elements and seal ring are imported from Germany ( Dichtomatik company )can ensure high sealing performance. The oil outlet of Oil cylinder is installed automatic shutoff valve have to be automatic shut-off which can perform closure when the oil tube suddenly burst.

3. The major structure, main frame is welded by high quality rectangular tube which is manufactured by Shanghai steel company. The material is high strength, high resistance to bending and corrosion resisting

4. Compact main body, easy control and flexible movement.

5. In the rotating element, it's equipped with composite bearing and oil cup, to make sure it can go up and down stably and no noise interference.

6. Hydraulic oil: Anti wear hydraulic oil

7.Hydromantic oil pipe feature: inner two-double pressure proof steel mesh, which increase resistance to pressure and safety factor.

8. Chargeable battery provides the power to move around and also provides the power to lift the platform,without external power supply.
